Samebike E-ONE II
$999.00
$999.00
Tax and
Shipping included.
New Models $100 Off Code
SAM2023
✅ In Stock Now. Ship out in 2 business days.
Over view
Availability: In stock, ships within 2 business days

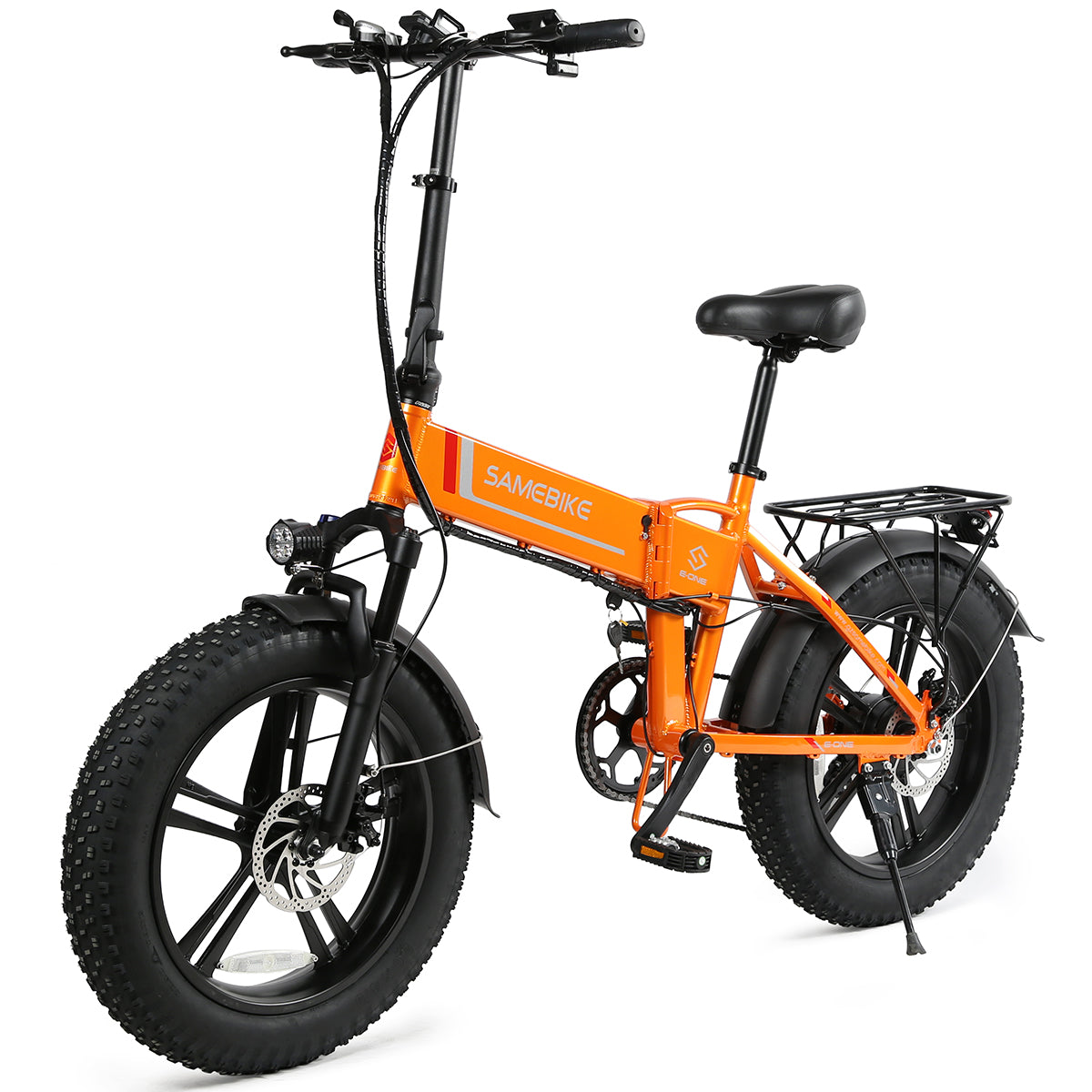

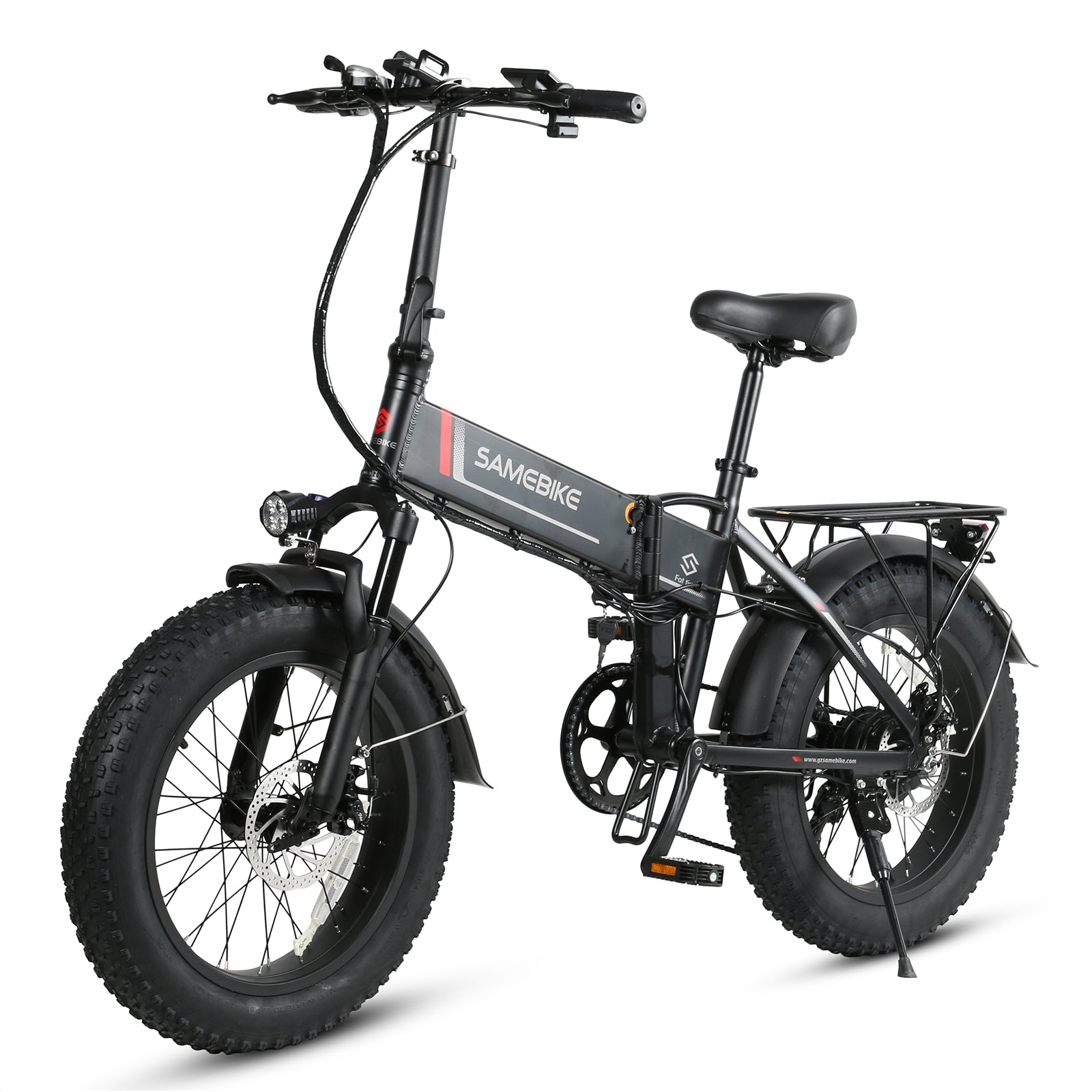

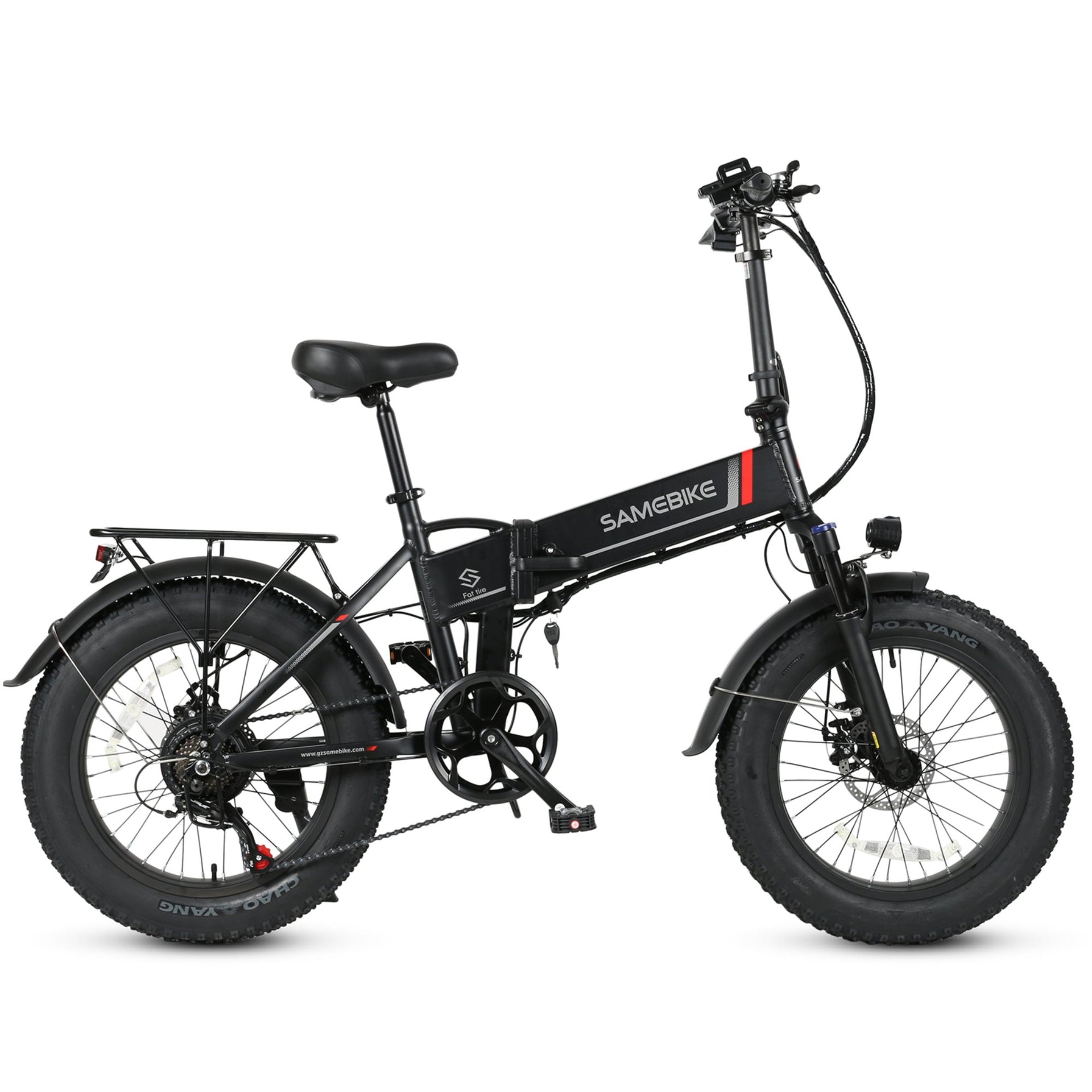

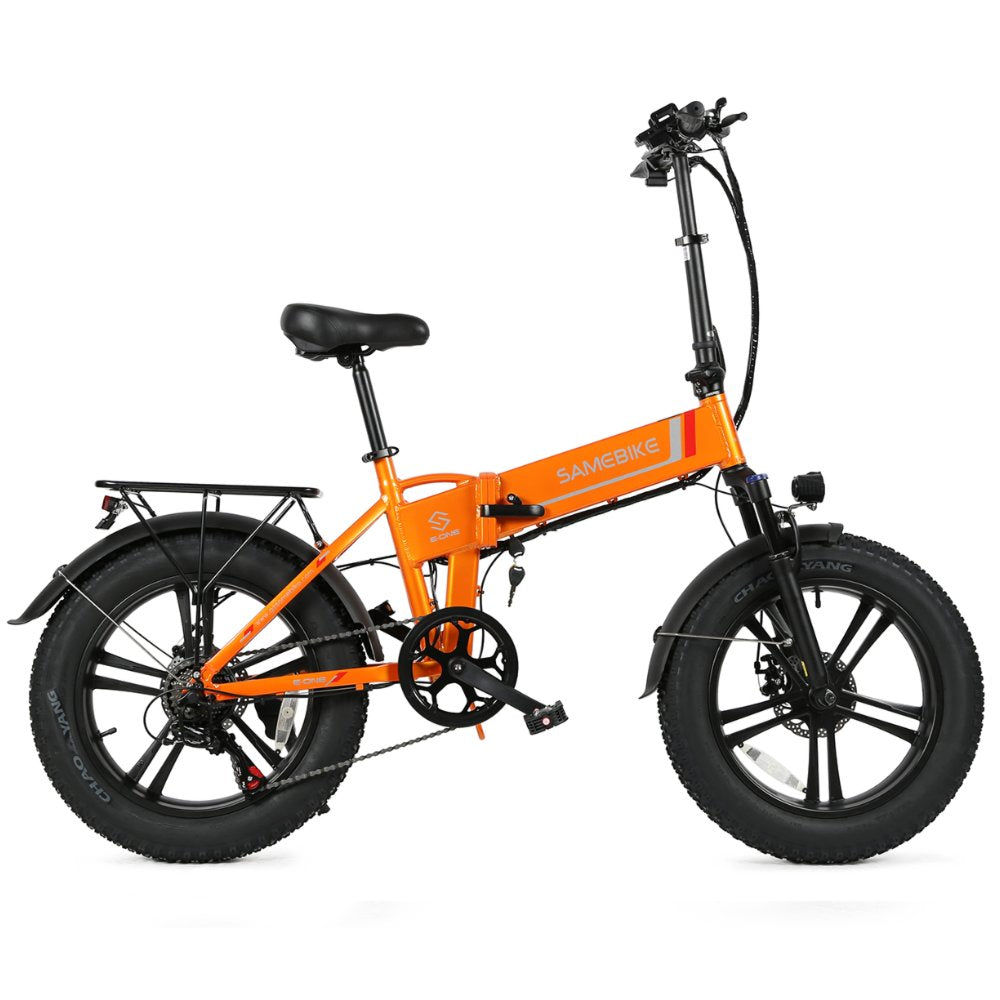

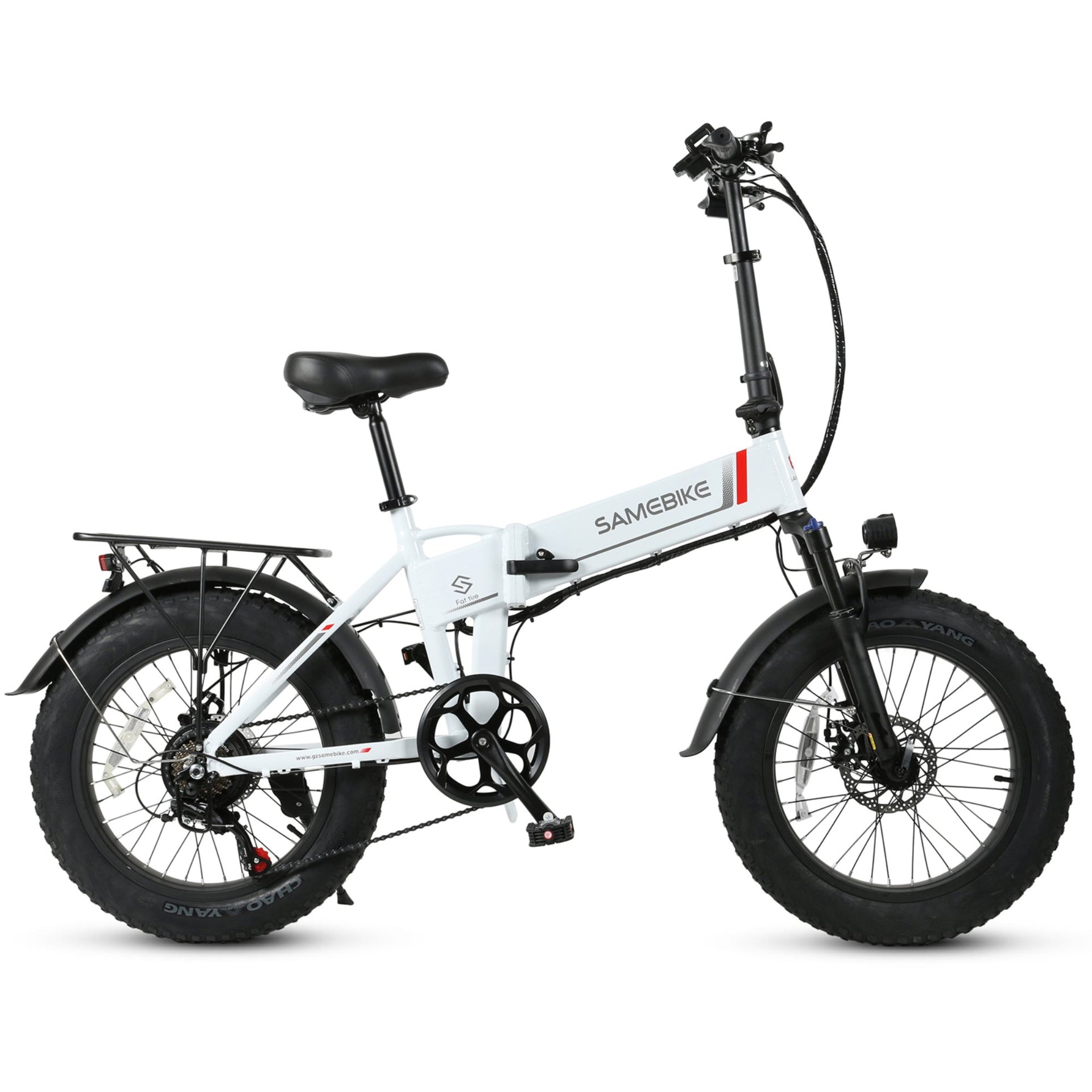

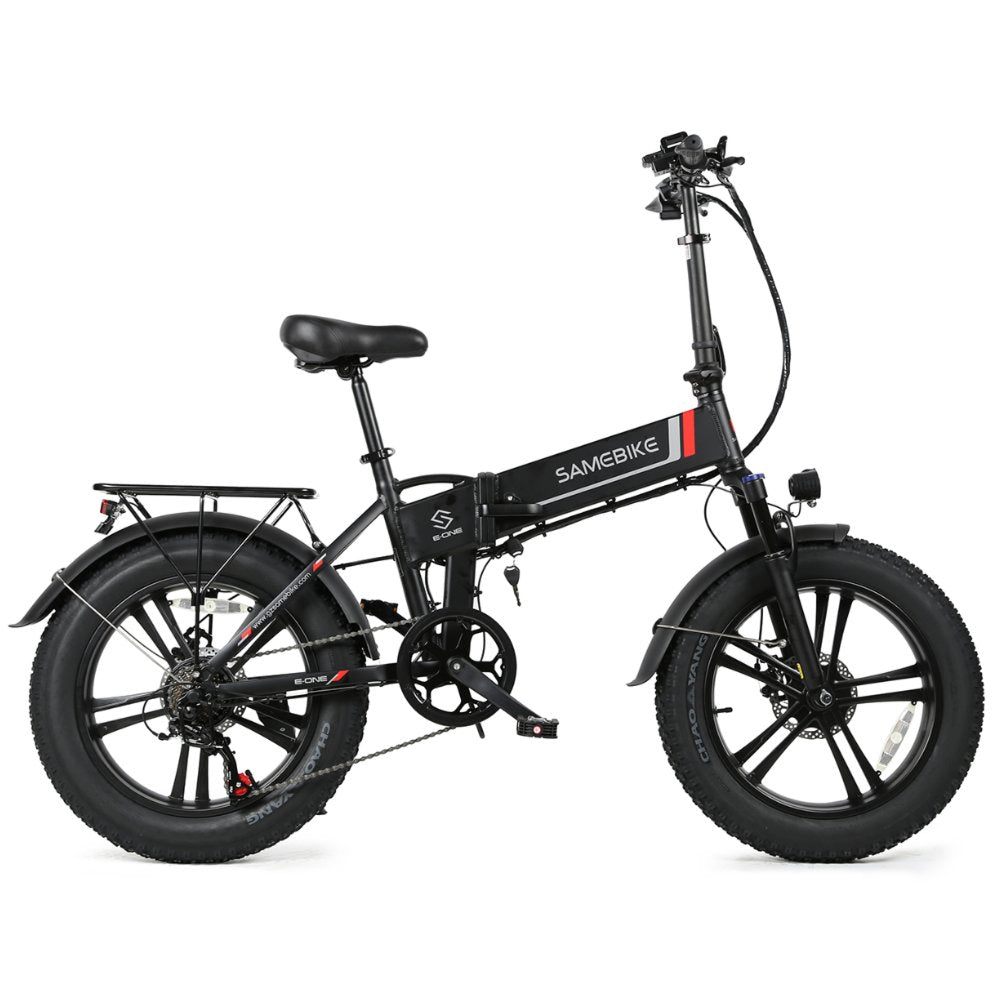

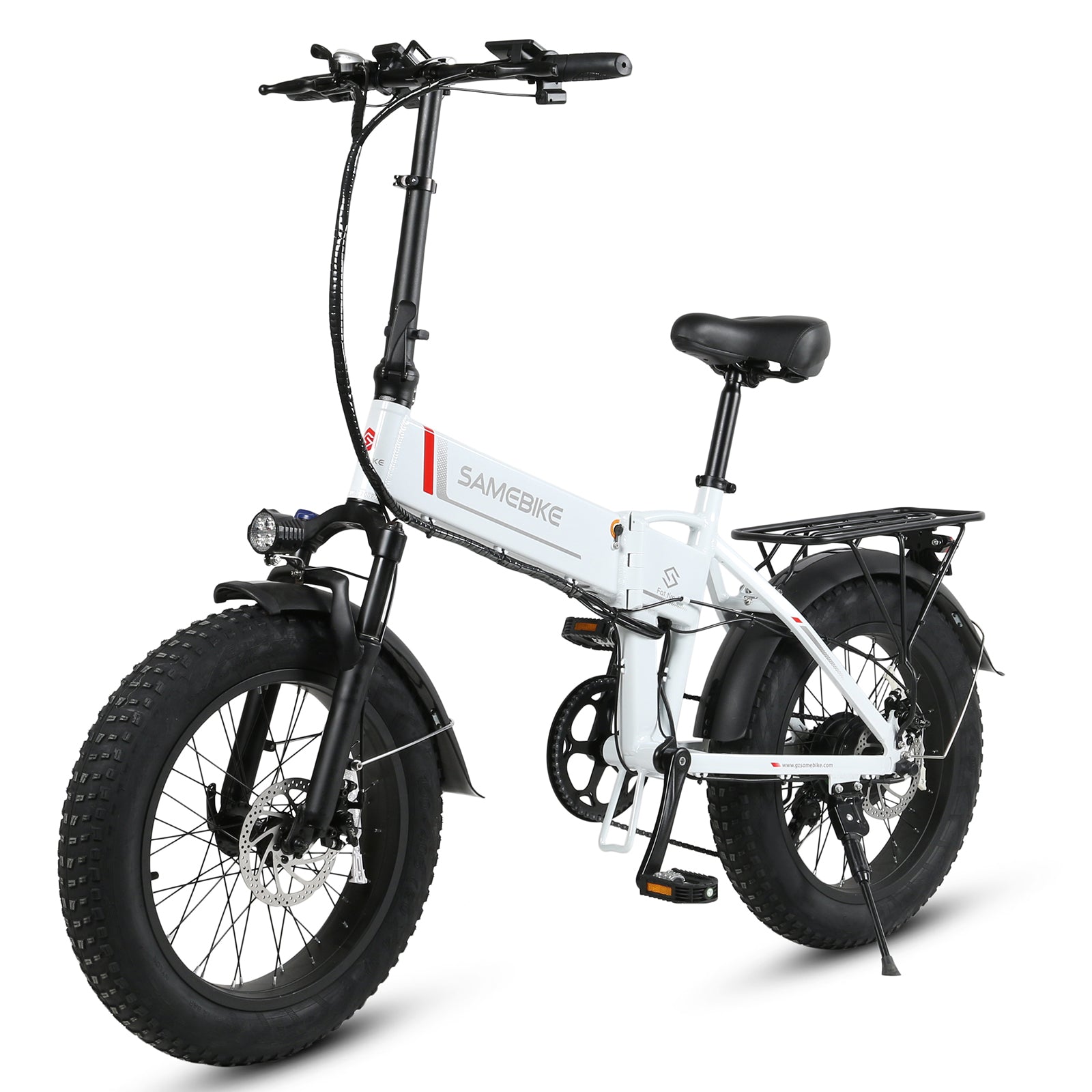

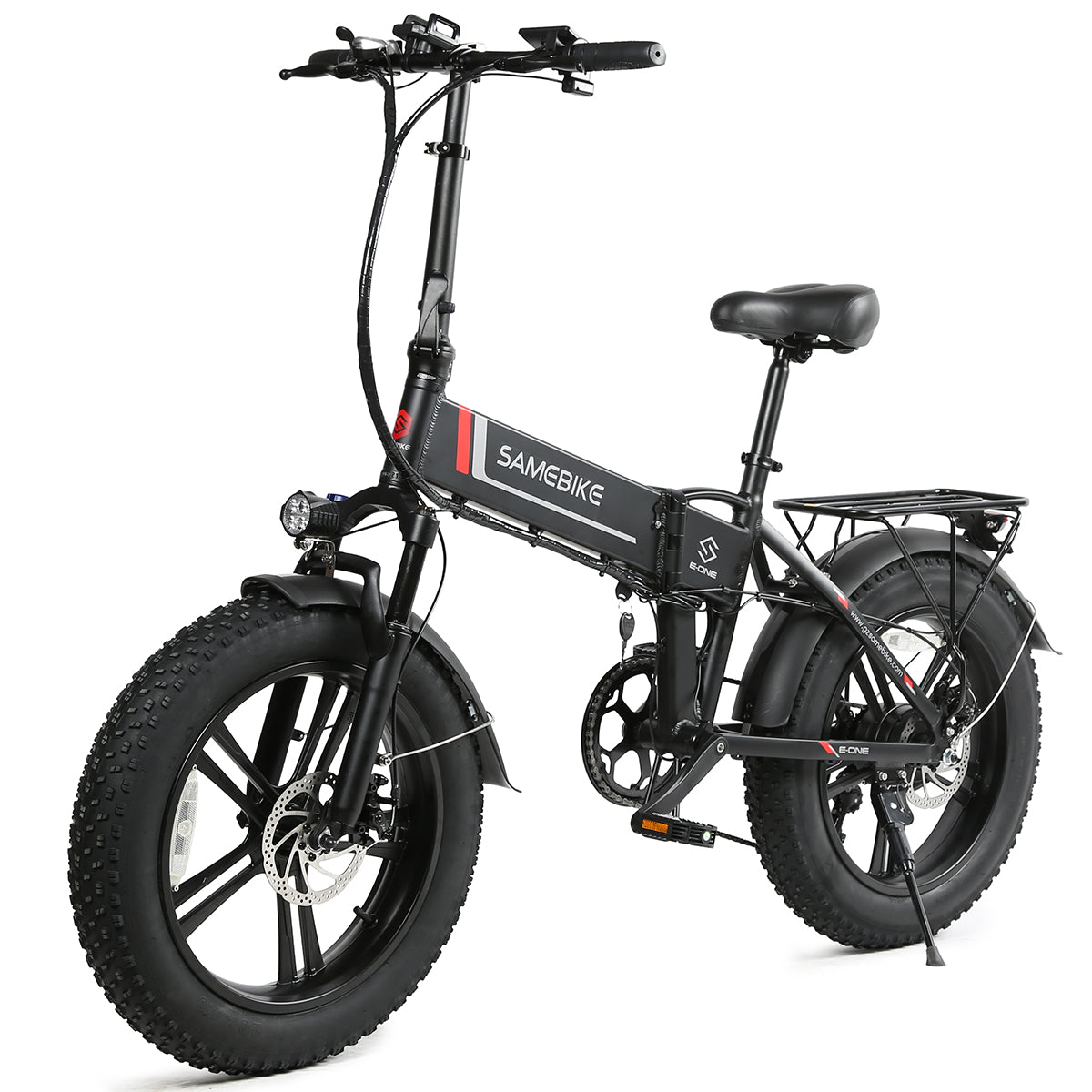

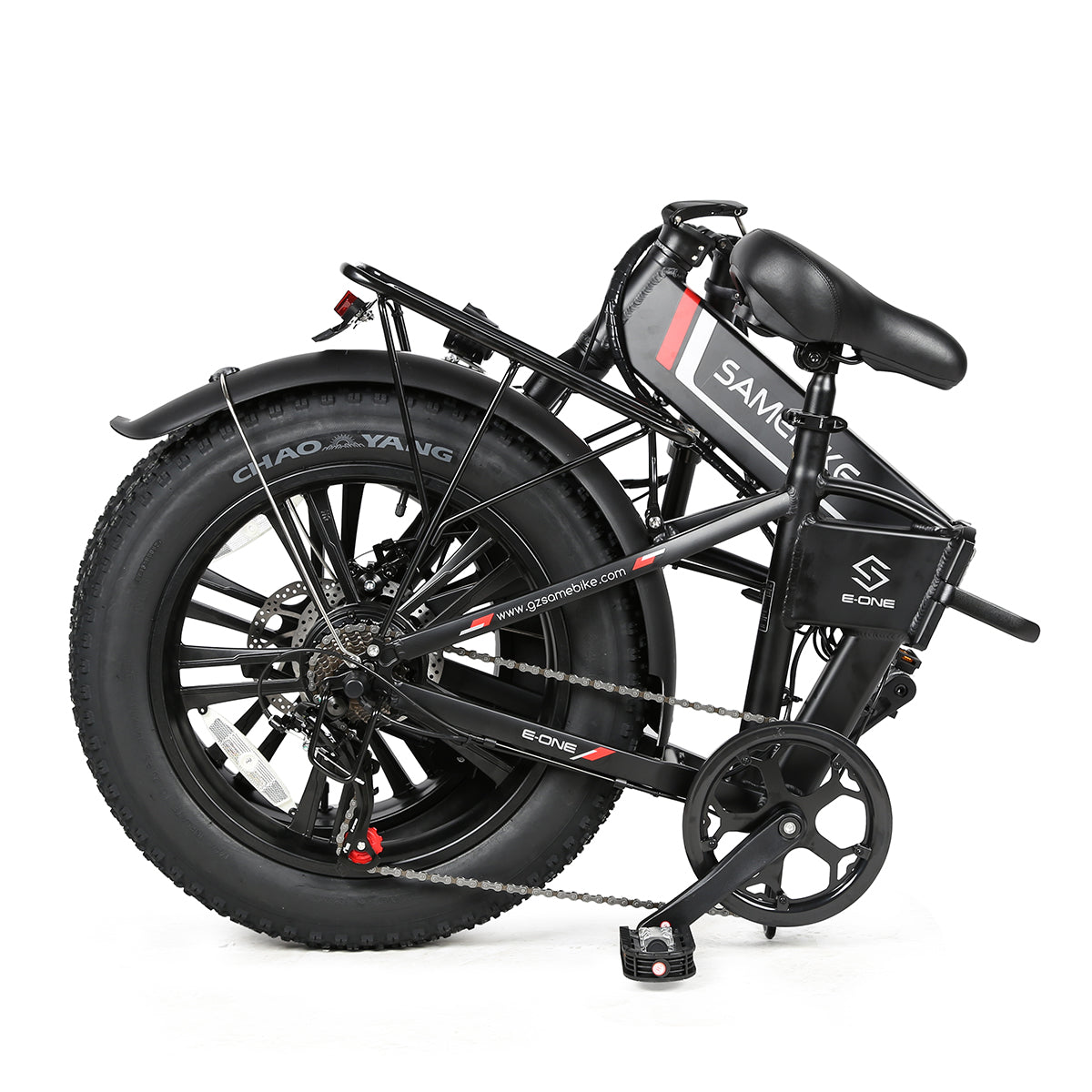

The classic model E-ONE II (LOTDM200) foldable fat bike with alloy/spoked rims, 31"x39"x22" folded size for transport and daily commute.
- 48V 500W motor (780W peak)
- 48V 10Ah lithium-ion battery
- 20" x 17.5" 6061 AL alloy frame
- 20" x 4.0" alloy tires
- 5-levels power assist, Shimano 7-speed
- Pedal-assist, thumb throttle
Free Shipping to USA
Cost & Destination
Currently, we only offer FREE FedEx/UPS Ground shipping to the contiguous 48 states in the US. Do not process orders on weekends.
Shipping Time
| Destination | Processing time | Shipping time |
| The United States | 1-2 business days | 3-12 business days |
Local Pickup
Customers can come to our warehouses and pickup selected models.There will be $50 off per bike for pickup orders.
Learn more about our SHIPPING POLICY
Returns & Warranty
Customers have 15 Days to experience and decide whether to keep the bike. To return an item without manufacturing defects, the customer is responsible for return shipping and restocking costs.
All bikes are covered by our all-inclusive warranty against all manufacturing defects for the original buyer/owner.
| Parts | Defective | Period |
| Motor | Not functional / coil burnt | 1 Year |
| Battery | Unable to charge / mileage per charge < 20% | 1 Year |
| Controller | Not functional / Error code | 1 Year |
| Charger | Not charging | 1 Year |
| Display | Error code | 1 Year |
| Pedal-assist sensor | No assistance /insensitive | 1 Year |
| Lights | Not lit | 1 Year |
| Frame | Deformation / desoldering / cracking | 1 Year |
| Front fork | Deformation / fracture / no shock absorption | 1 Year |
| Seatpost | Deformation / desoldering / cracking | 1 Year |
| Handlebar | Deformation / desoldering / cracking | 1 Year |
| Stem | Deformation / desoldering / cracking | 1 Year |
| Headset | Failure / unsmooth steering | 1 Year |
| Brakes | Failure / rebound blocked | 1 Year |
| Brake disc | Deformation / fracture | 1 Year |
| Crankset | Deformation / fracture | 1 Year |
| Freewheel | Deformation / detachment | 1 Year |
| Derailleur | Stuck / abnormal noise | 1 Year |
| Shifter | Stuck/abnormal noise | 1 Year |
Technical Specifications
Basic Specifications |
||
|---|---|---|
| E-bike class | Top speed | Range per charge |
| Class 2 electric bike | 18.6 mph w/o limit | 43.4-49.7 miles for pedal-assist |
| The bike comes with a 20 mph speed limit for both pedal-assist and throttle modes | Customers can disable the top speed limit on display to go over 20 mph | 50% default assist rate. 21.7-24.9 miles per charge for throttle-only riding |
| Motor gears | Payload capacity | Bike weight |
| Automatic gearshift | 265 lbs | 64 lbs in total |
| For both pedal-assist and throttle modes | Affects the range per charge | With the battery (6.83 lbs) installed |
| Brake type | Water-proof level | Bike grade ability |
| Mechanical disc brakes | IP-54 for general outdoor use | 14° for dry dirt roads |
| Premium bike mechanical disc brake | Protected from water spray from any direction | with throttle only, or up to 20° with pedal |
Electronic System |
||
|---|---|---|

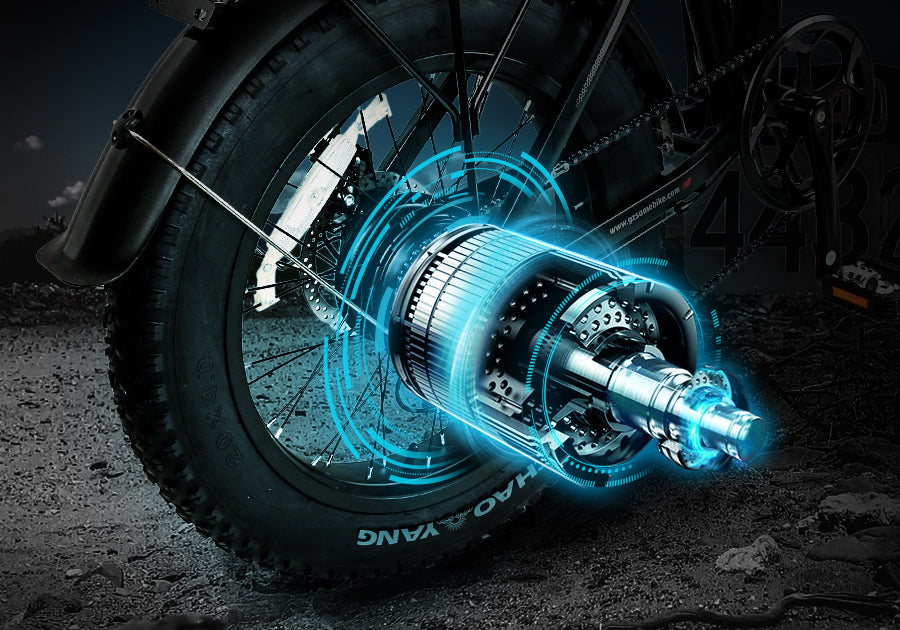

| Motor | Controller | Display |
| Brushless 350W DC | 48V 15±1A 6MOSFET | LCD display+ USB charging port |
| geared hub motor, max torque 45N·m | fat tire motor controller, cut-off voltage: 39V | Custom smart ebike display |
| Battery | Charger | Lights |

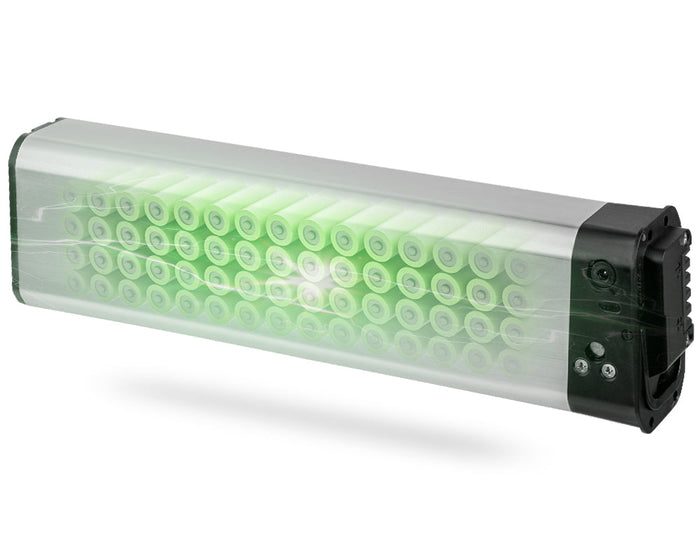

| 48V 10Ah Lithium-ion |
54.6V 2A DC 2.1mm |

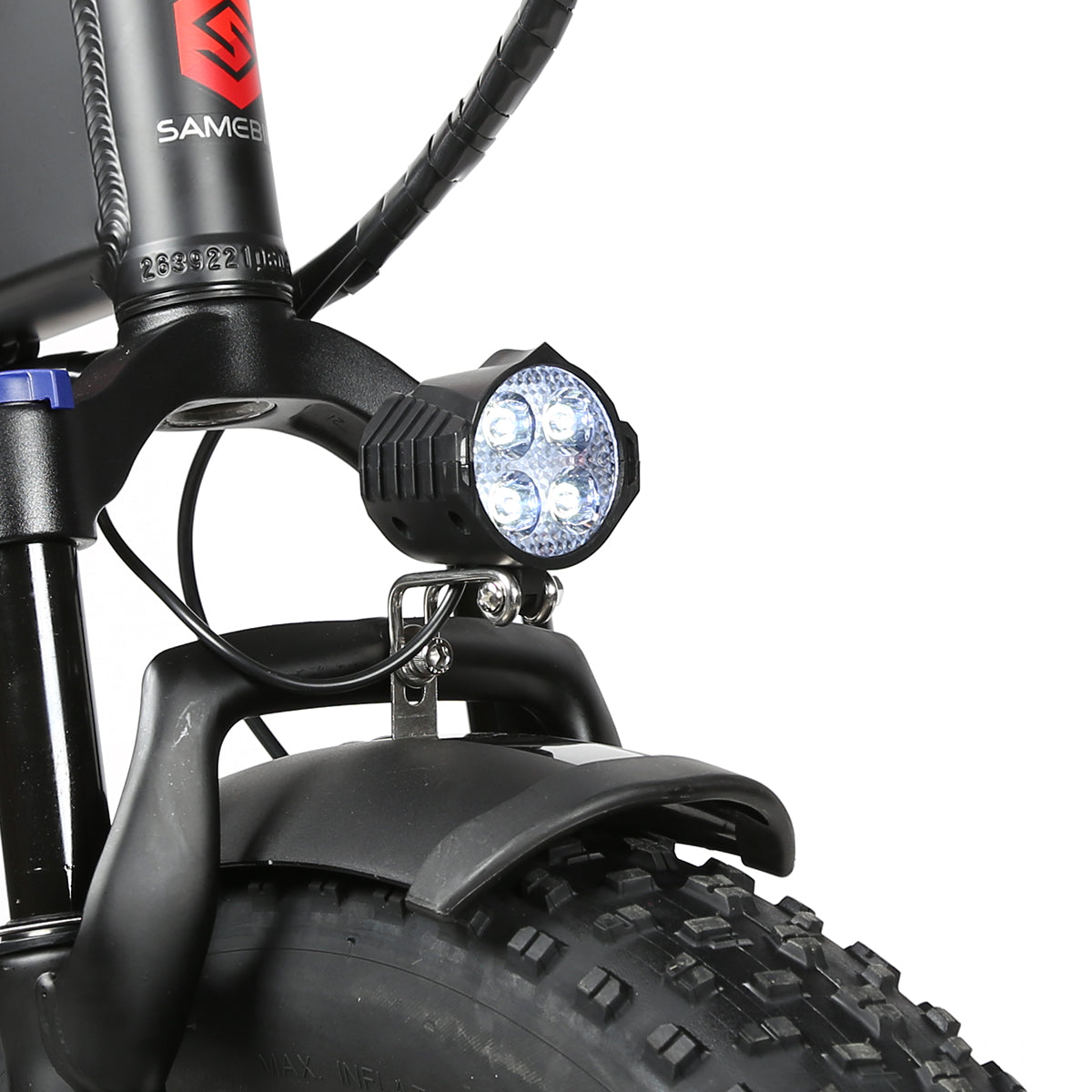

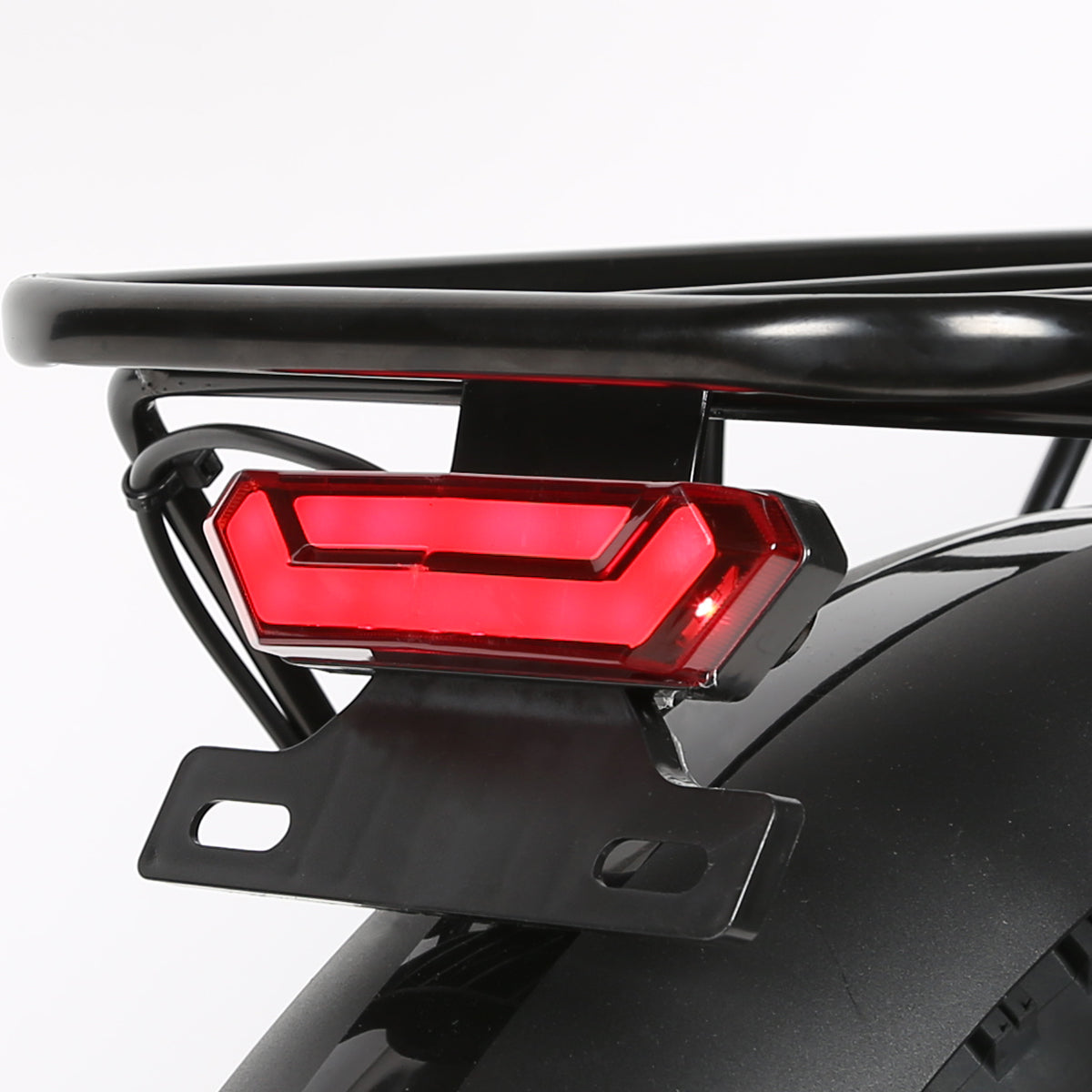

5W LED headlight and tail light |
| ZHUONENG 18650 battery cells | impulse-output charger with full-charge cut-off | with a built-in electric horn, no brake/steering lights |
| Throttle | Pedal-assist sensor | Wiring |
| Thmub throttle | Cadence sensor | Waterproof wiring harness |
| slightly delayed response/boot in default | Protected from water spray from any direction | semi-internal cable routing, circular connectors |
Bicycle Components |
||
|---|---|---|
| Frame | Front fork | Handlebar |
| 20" * 17" hardtail foldable |
20" coil suspension |
25.2" flat-bar handlebar |

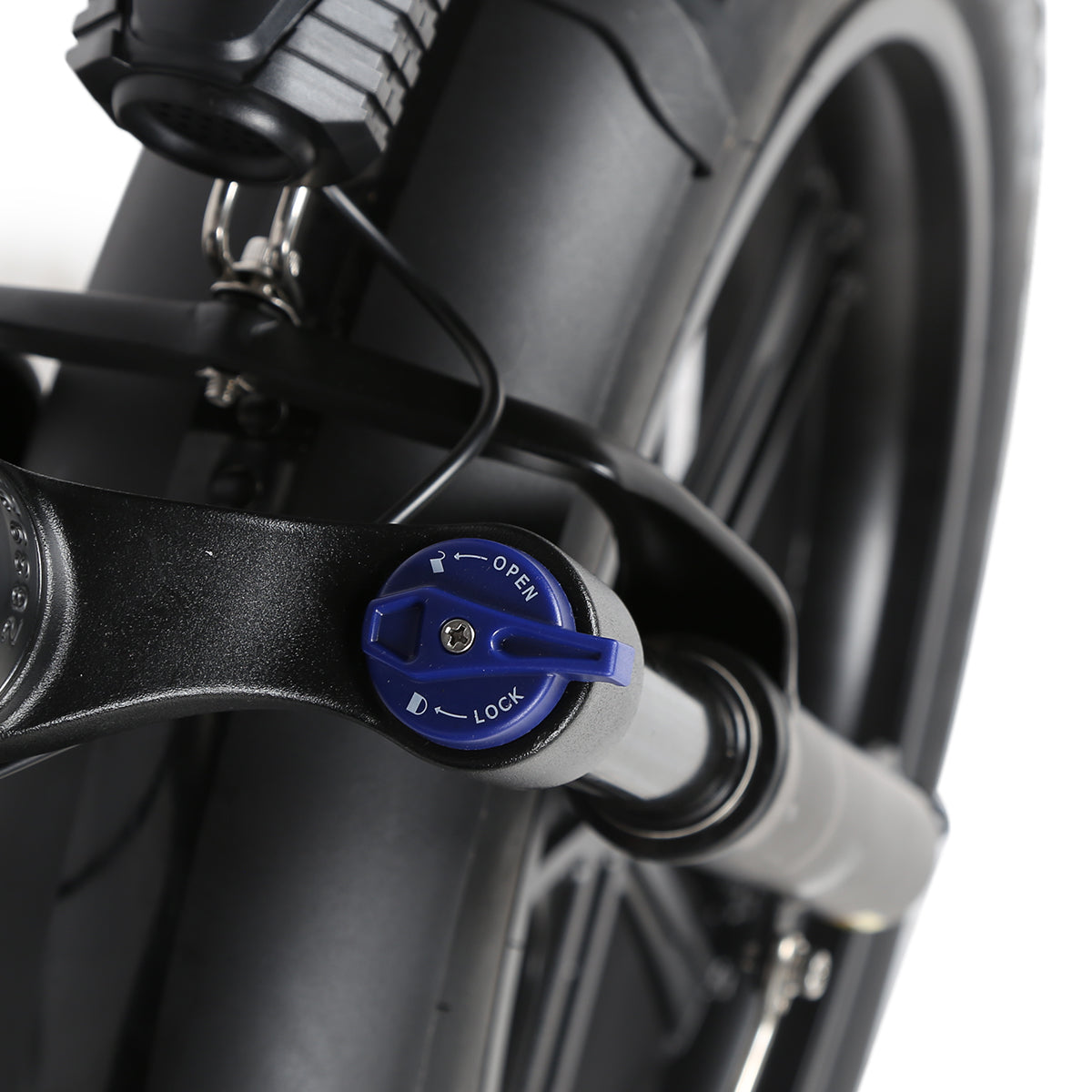

| 6061 aluminum alloy argon arc welding frame | adjustable aluminum alloy front fork with lockout | aluminum alloy with rubber ergonomic grips |

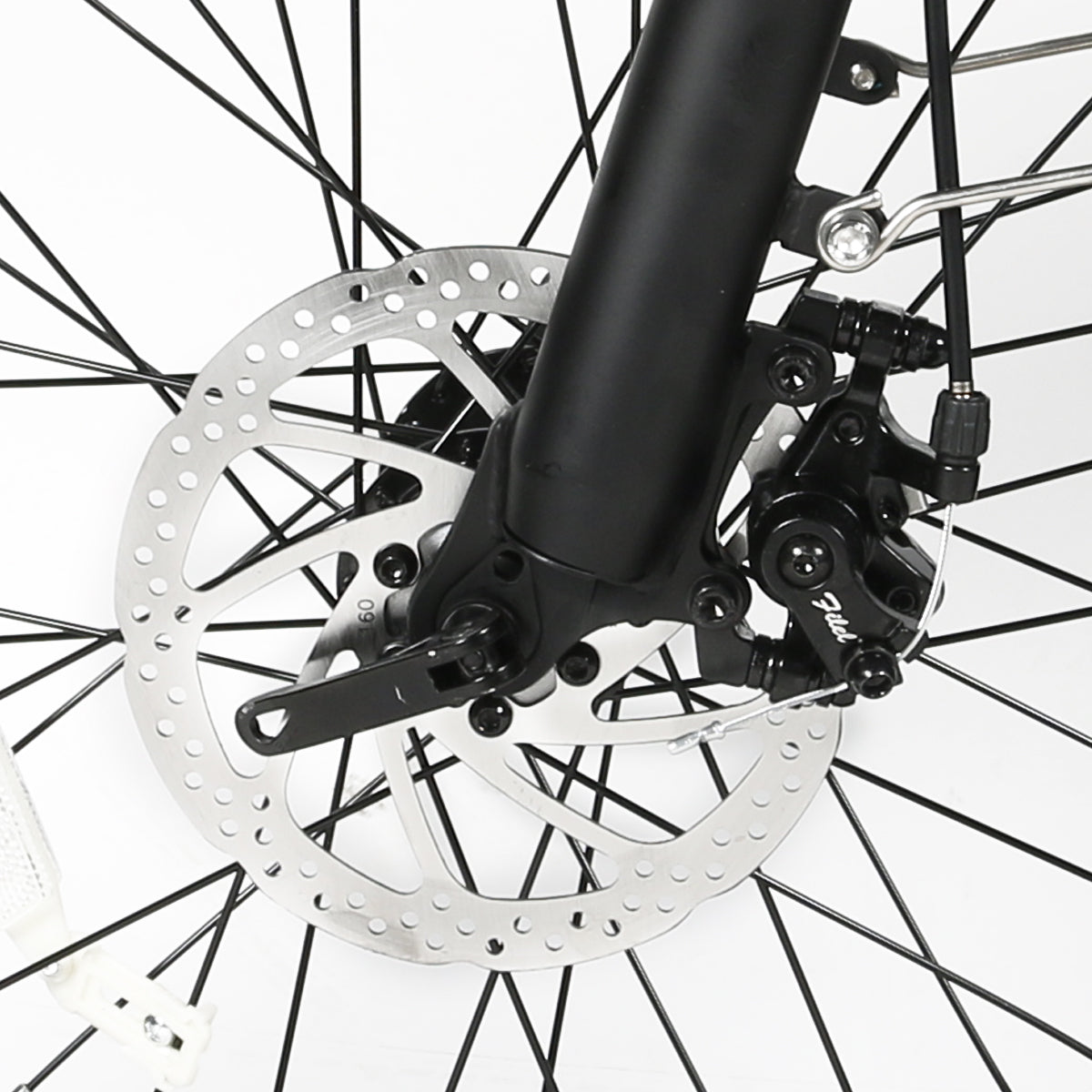

| Brake caliper | Brake lever | Brake rotors |
| FILEL mechanical caliper | Mechanical brake lever | 160mm stainless steel |
| with copper-basis semi-metallic brake pads | aluminum alloy brake lever with brake cut-off | front and rear disc rotors |

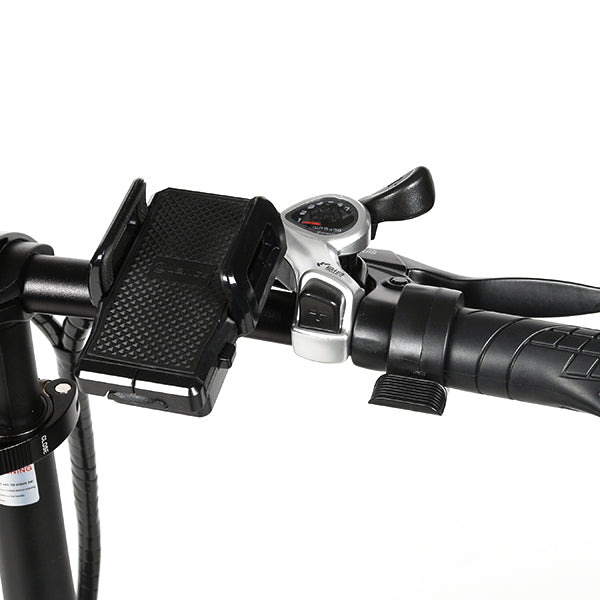

| Shifter | Derailleur | Freewheel |

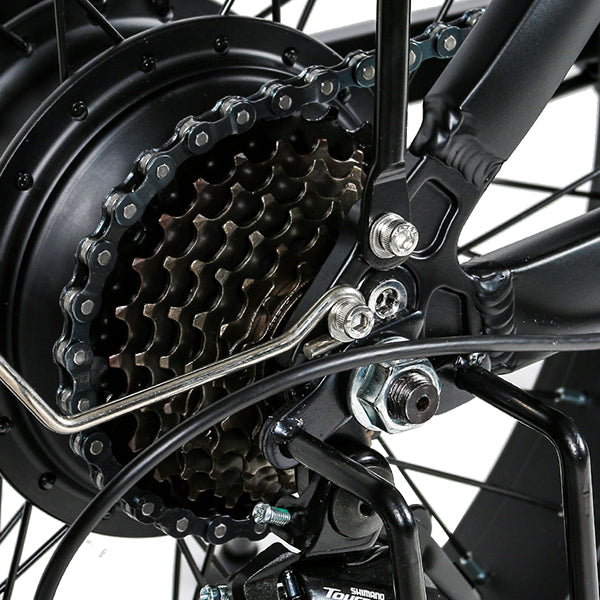

| SHIMANO Tourney | SHIMANO Tourney | 11-28T 7-speed |
| 7-speed right shifter lever | 7-speed derailleur | SHIMANO cast iron freewheel |

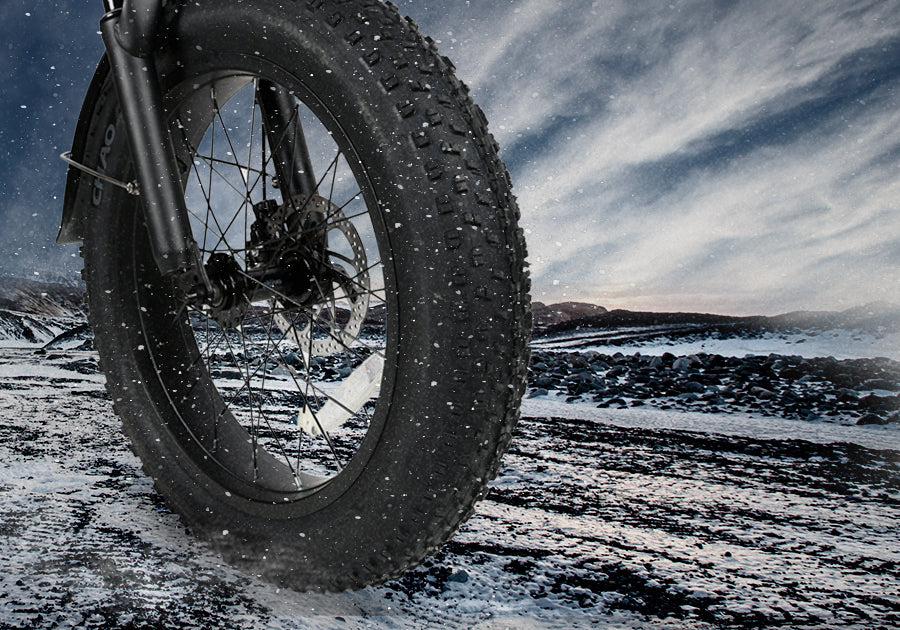

| Tires | Rims | Valve |
| 20" * 4.0" alloy tires | Aluminum alloy rims | 48mm AV |
| tube tires, 270-440Kpa/40-65PSI | 6061 aluminum alloy | Schrader valve stems |
| Crankset | Pedal | Chain |

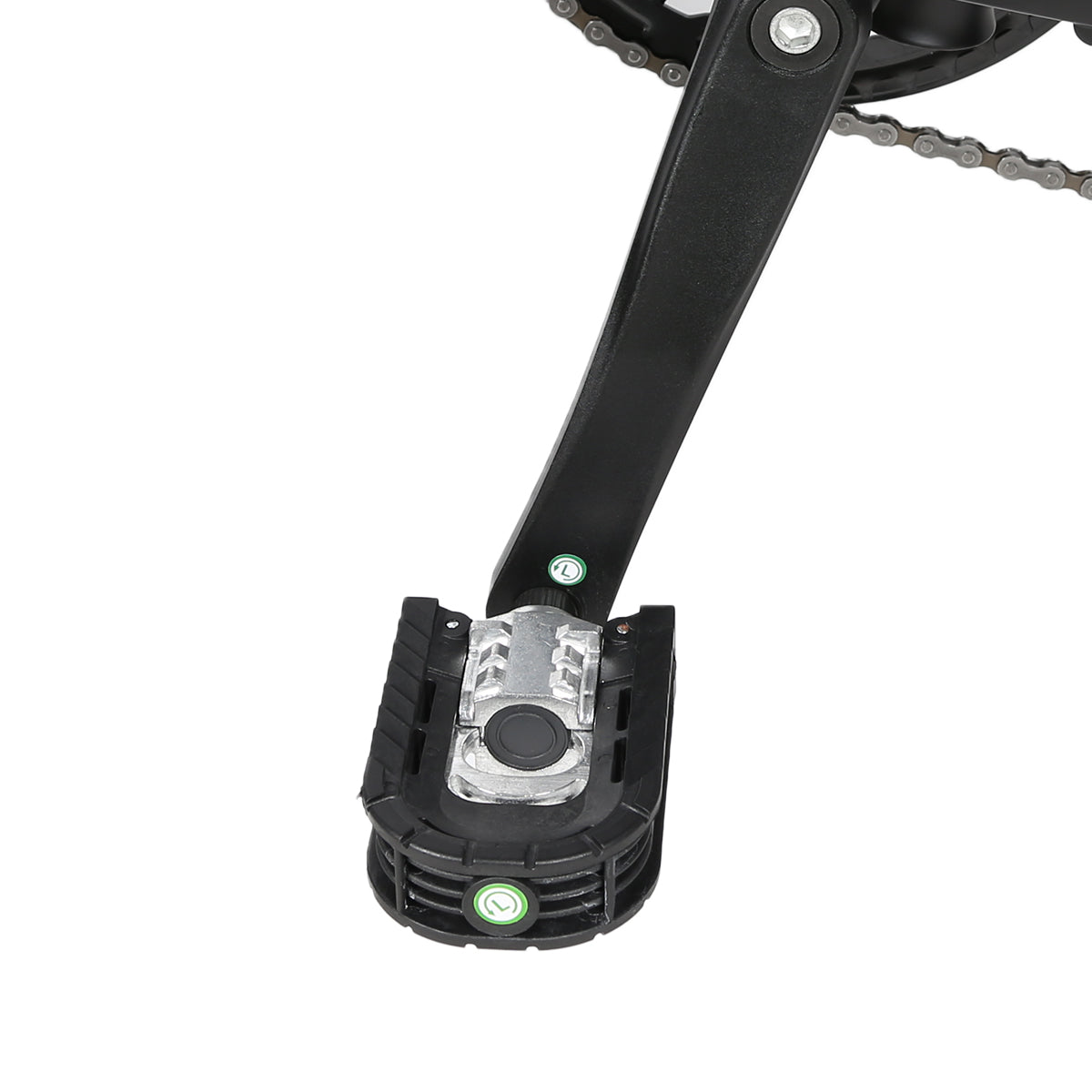

| 170mm cast iron cranks | 9/16" platform pedals | KMC chain |
| 48T chainring with aluminum dual-guard | Cast iron MTB pedals | stainless steel with a titanium nitride coating |
| Seat | Seatpost | Kickstand |

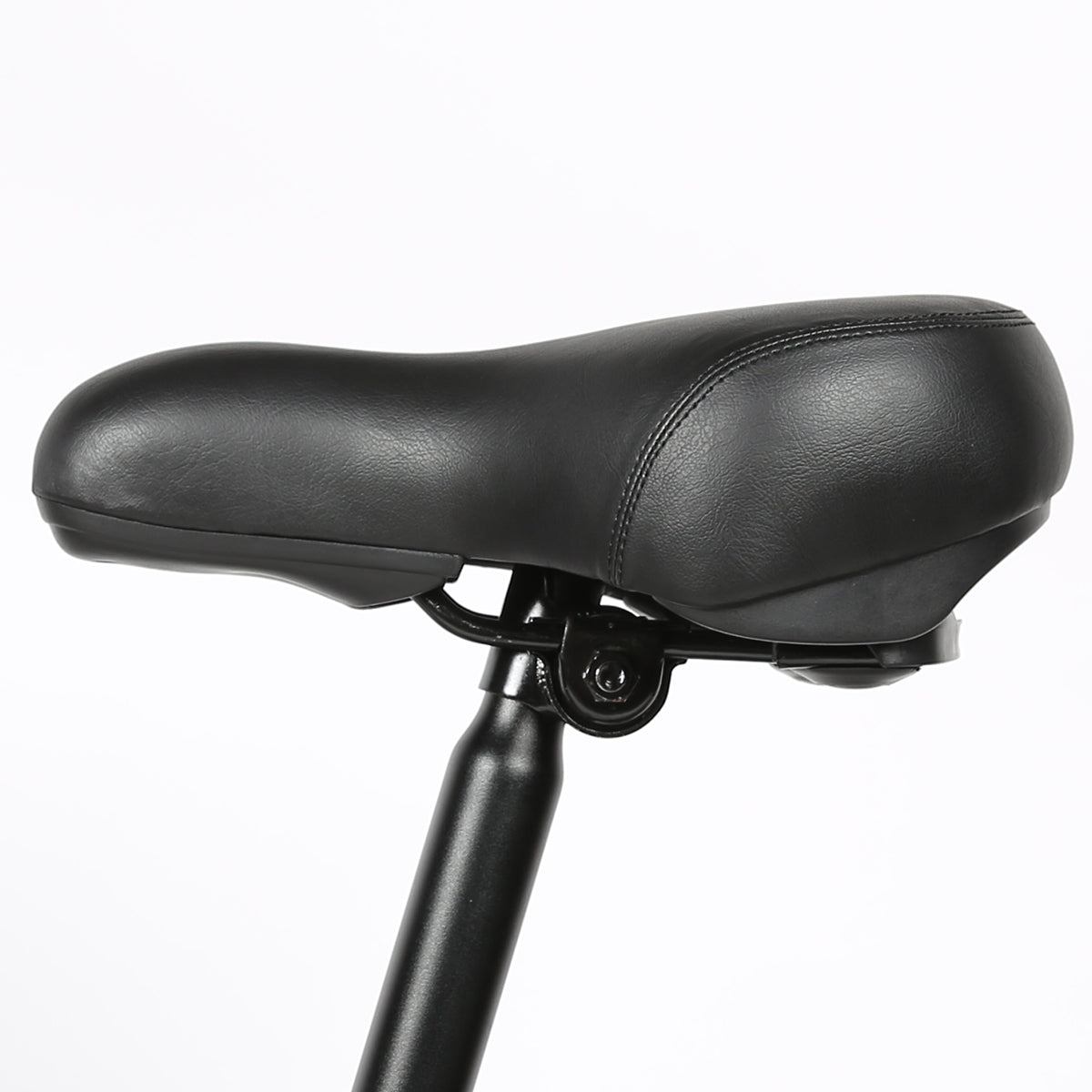

| Widened thick saddle | Suspension Seatpost | Standard kickstand |
| with pressure relief design, sponge filling | aluminum alloy seatpost, quick-release | aluminum alloy with plastic foot |
| Fenders | Racks | Reflectors |
| Front and rear | Rear rack | Rear rack reflectors |
| full-coverage plastic fenders | heavy-duty aluminum alloy | pedal reflectors |
