What's in the package?
1 x Battery Half-charged
1 x Bicycle 85% Pre-assembled
1 x Charger 2Amp impulse charger
1 x Front Tire Don't touch the brake rotor/disc
1 x Pedal Set Marked left and right
1 x Quick-release Skewer Secure the front tire
1 x Seat Set Quick-release caliper
1 x Tool All tools for assembling
1 x User Manual Read before use
User tools
Assemble Video
Owner's Manual
Destination | Processing time | Shipping time |
The United States | 1 business days | 3-12 business days |
- We provide free shipping to the contiguous United States;
- FedEx/UPS will take the bike by the end of the next business day;
- The tracking number will send to your email later, please add support@samebikeus.com to your email contacts;
- Please contact us if you're convenient to pickup in California.
- See more about shipping policy.
- You have 15 days to test and experience the bike;
- Please keep the original box and all items inside;
- Please contact us immidiately if you have any question about the bike;
- See more about return policy.
All bikes are covered by our all-inclusive warranty against all manufacturing defects for the original buyer/owner.
Part | Type | DLP |
Frame | Structure | 3 Years |
Front Fork | Structure | 3 Years |
Hubs, headset, etc | Structure | 3 Years |
Battery | Electronics | 12 Months |
Motor | Electronics | 12 Months |
Controller, headlight, etc. | Electronics | 12 Months |
Brake pads | Wearing parts | 30 Days |
Inner tubes | Wearing parts | 30 Days |
Other accessories | Accessories | Shipping damage warranty |
BAFANG Motor
In-frame Battery
All-terrains Tires
Full-susp Frame
Riding Gears
Throttle Type
POWER EVERY RIDING
Core Drive System

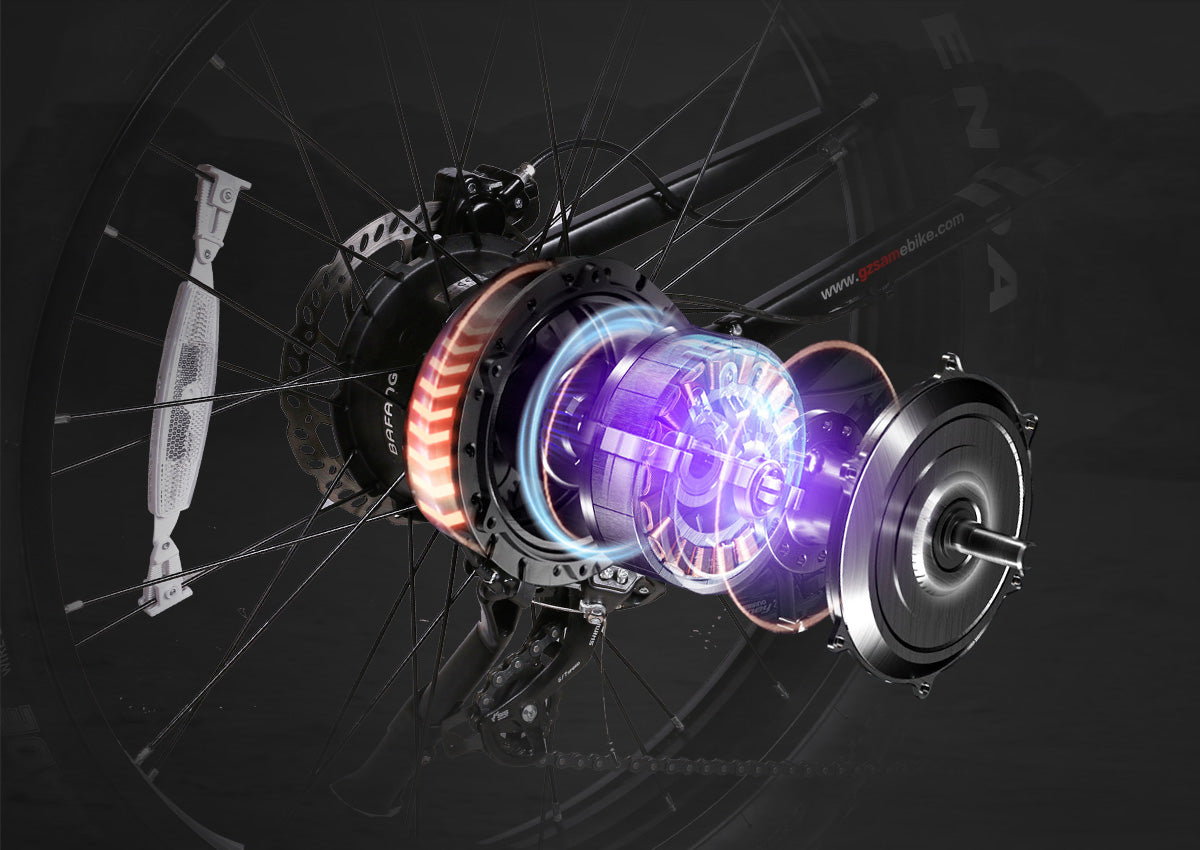

BAFANG 750W Brushless Geared Hub Motor
Mountain, sand, snow, gravel roads...Curbing all kinds of terrains with Samebike RS-A08's extremely efficient 750w rear hub-drive motor, a cadence-based 5-level pedal assist, and thumb throttle. Over 80N.m of torque always help handle steep hills with ease.

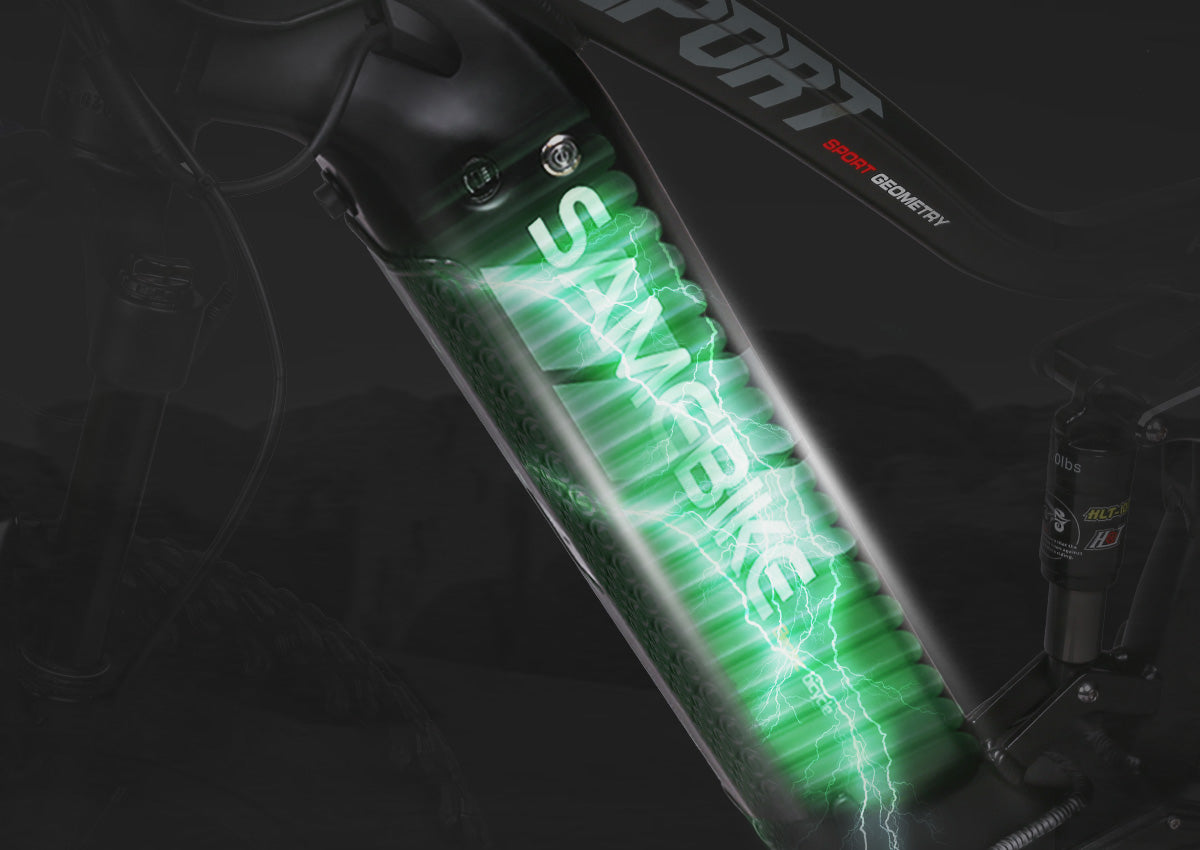

816Wh Samsung Cells Li-ion Battery, 48V 17Ah
The battery can be charged while settled on the bike or removed separately, and you can get up to 68 miles on a single charge. Excellent positioning on the locking cylinder and battery charge port, makes you easily charge and fix the battery.

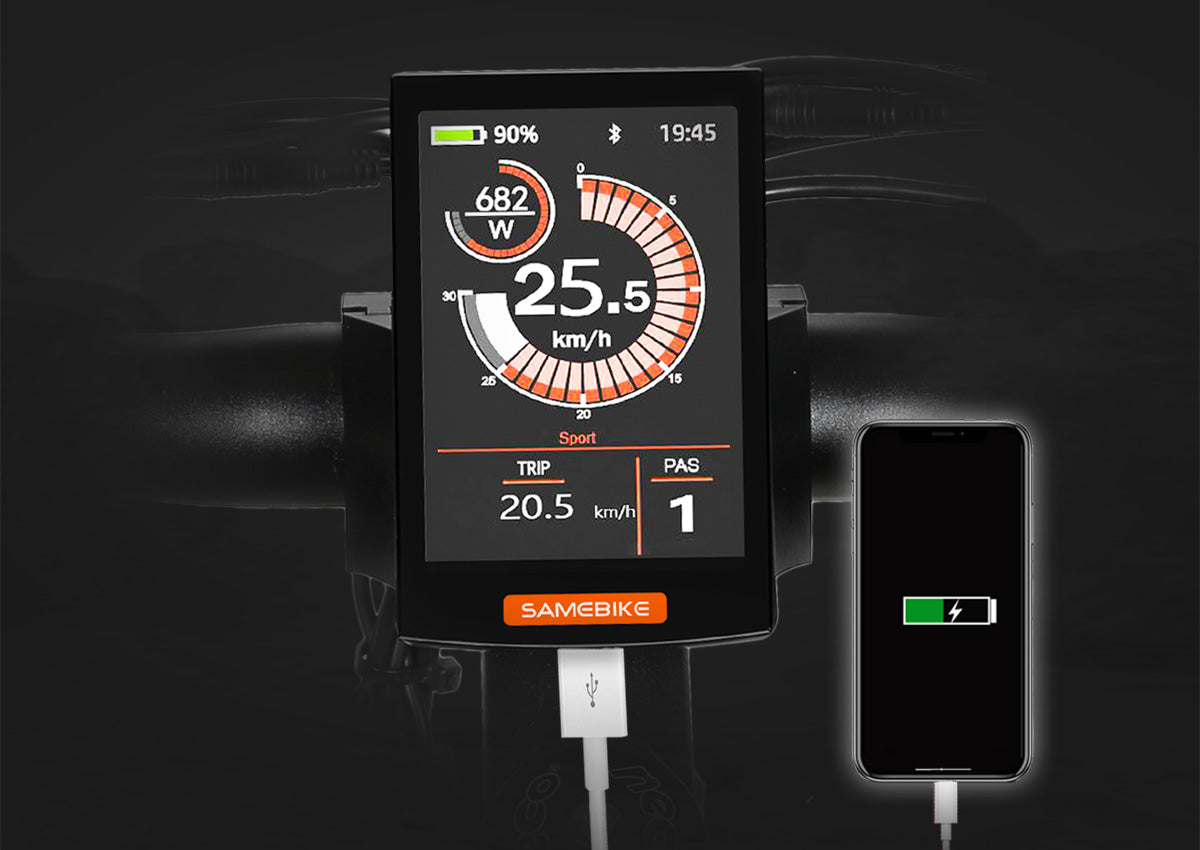

KD718 Color Display & Multi-funtion Controller
The Samebike RS-A08’s intelligent KD718 color display offers clear visibility in any weather. The display panel was easy to read in bright and dark conditions, and the buttons are intuitive to operate. There is also a USB-A port under the display which is convenient to charge your phone.

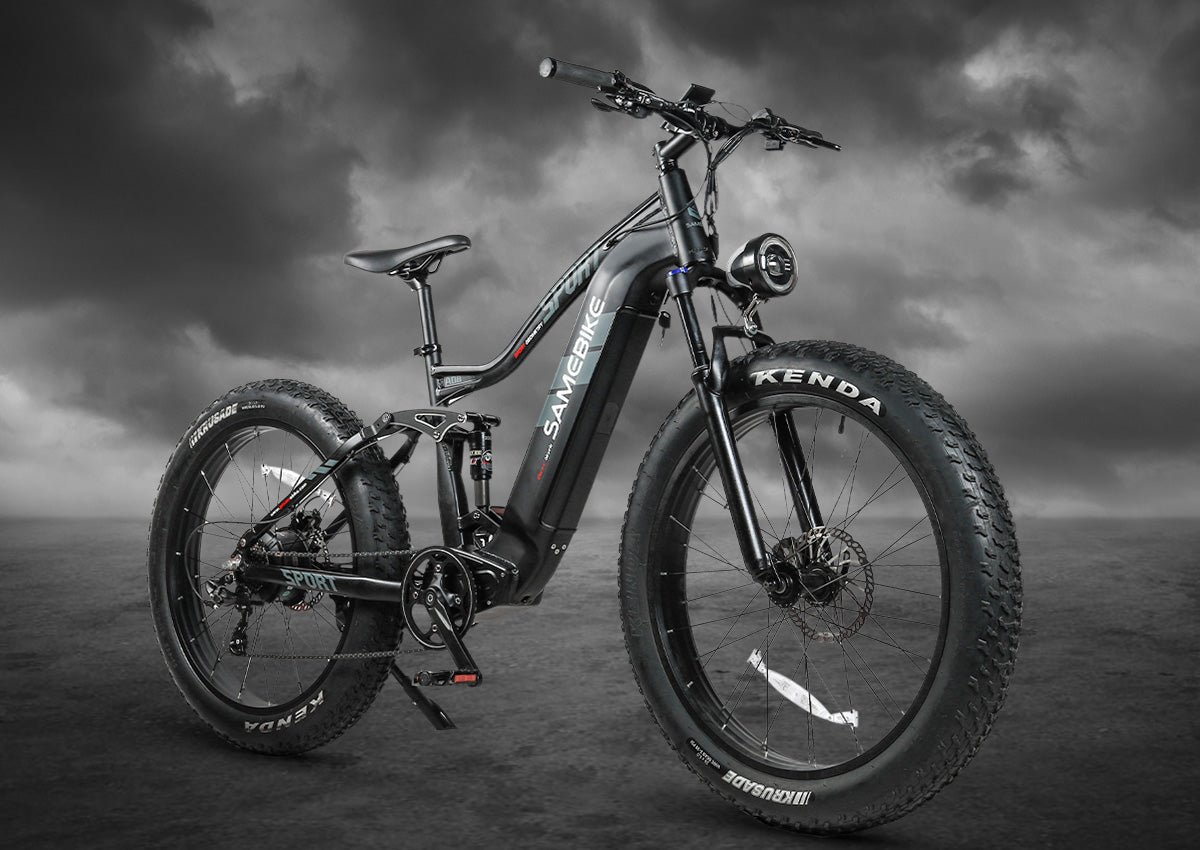

A powerful and cost-effective e-bike
✅ Hybrid Riding - 5 levels pedal assist
✅ Electric Only - full-speed thumb throttle
✅ Manpower Only - 7-speed all-terrain gears
✅ 3.7mph (6km/h) push to walk mode
MAXIMIZE RIDING EXPERIENCE
Parts and Details

KNOW THE BIKE DEEPER
Technical Specifications
Class 2 electric bike
The bike comes with a 20mph speed limit for both pedal-assist and throttle modes
26 - 28 mph w/o limit
Customers can disable the top speed limit on display to go over 20 mph
60 - 68 miles for pedal-assist
50% default assist rate. 33 - 37 miles percharge for throttle-only riding
5 levels assist
For both pedal-assist and throttle modes
330 lbs
Affects the range per charge
73.8 lbs in total
With the battery (8.6 lbs) installed
Hydraulic Disc brake
Premium bike hydraulic disc brake
IP54 for general outdoor use
Protected from water spray from any direction
15° for dry dirt roads
with throttle only, or up to 25° with pedal

5'8" - 7'3"
180cm - 220cm
45.3"
115cm
35.4" - 40.2"
Adjustable, 90cm - 1020cm
29.5"
Mountain bike frame
21.5"
Ample operate space
78.4"
49.6"
20.4"
26"
3.3"
8.9"
24.2"
17"
79.41°
26.4"
BAFANG G062 750W DC
brushless geared hub motor, max torque 80N·m
Sinewave Controller
fat tire motor controller, cut-off voltage: 39V
3.5" portrait color display
Key-Disp KD718 smart ebike display
48V 17Ah Lithium-ion
Samsung 21700 battery cells
54.6V 3A DC 2.1mm
quick charger with full-charge cut-off

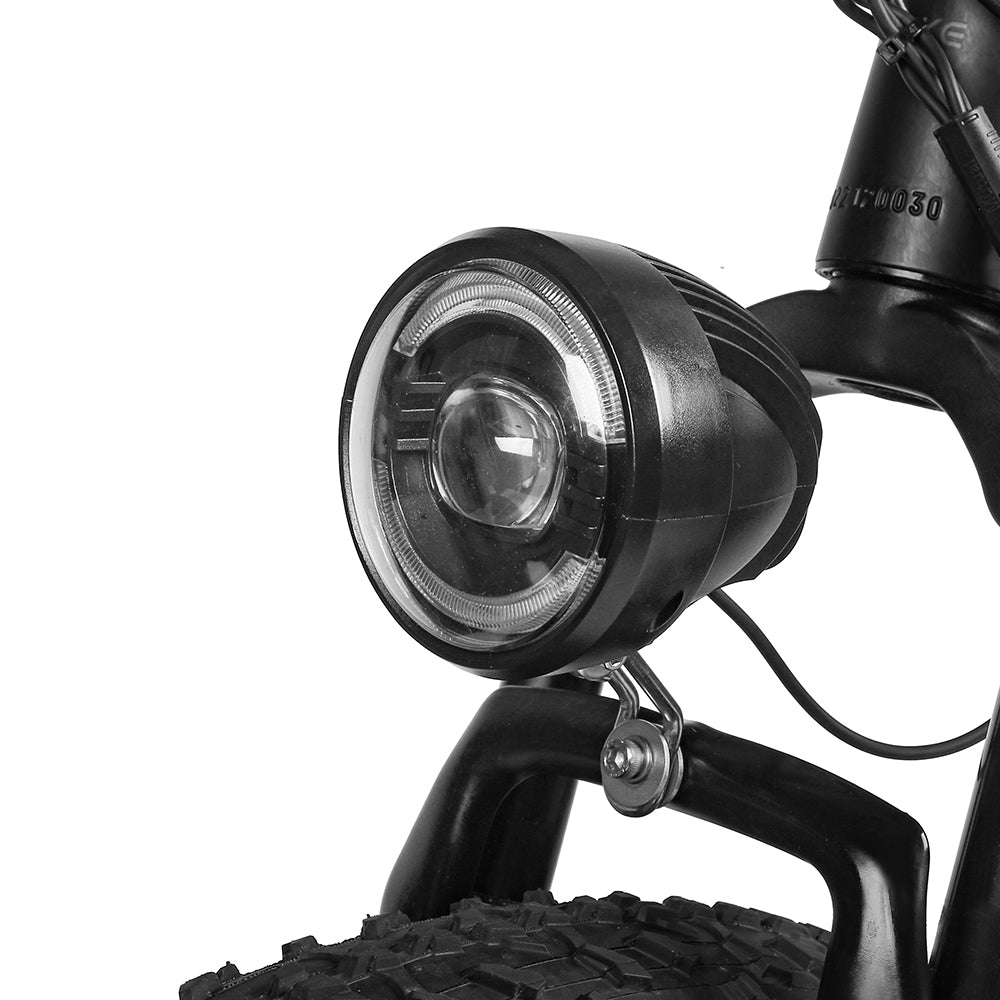

LED headlight & taillight
with a built-in electric horn, no brake/steering lights
Left thumb throttle
slightly delayed response/boot in default
Cadence sensor
easier to activate and keep motor engage
Waterproof wiring harness
semi-internal cable routing, circular connectors
Please understand that we may have to use different components and parts from the listed to ensure continuously supplying and shipping.
As it should be, all replacements were rigorously tested for performance, quality, and compatibility.
26" * 17" MTB frame
6061 aluminum alloy argon arc welding frame

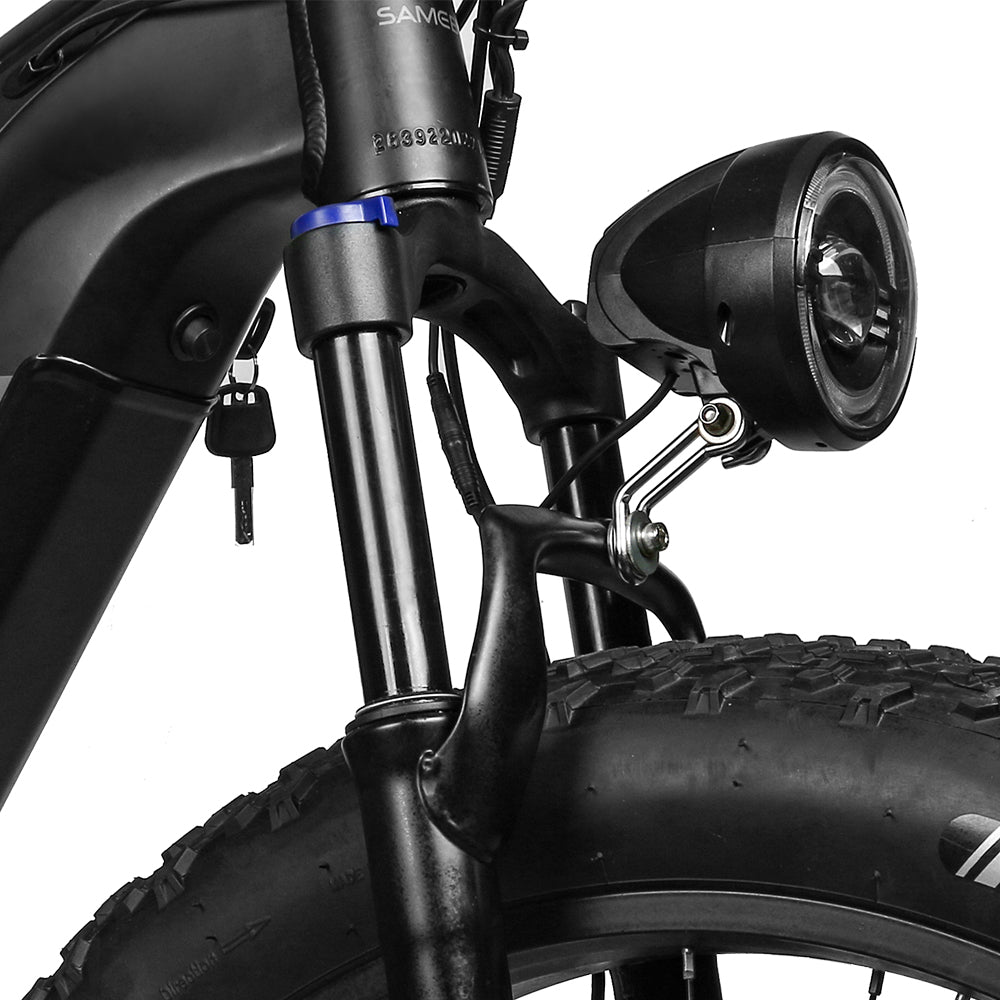

26" coil suspension
adjustable aluminum alloy front fork with lockout

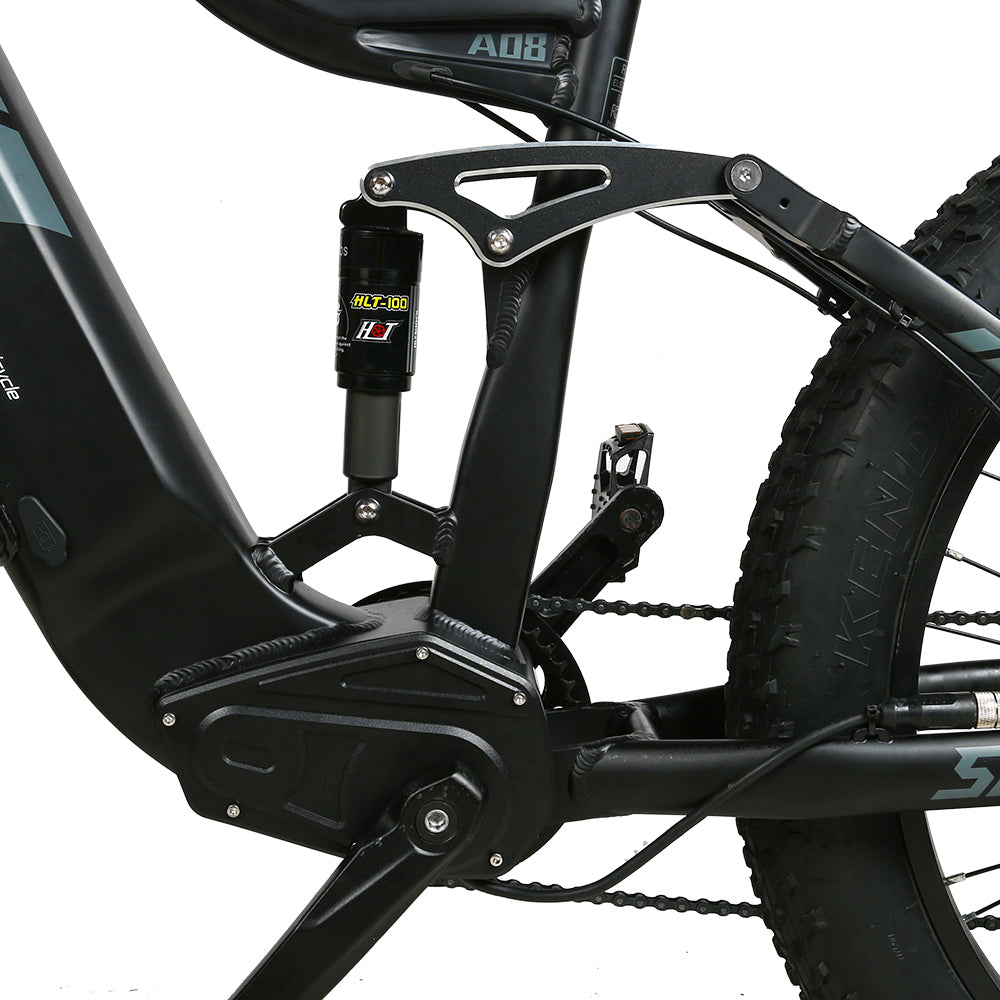

Hydraulic four-bar-linkage
HLT-100 1,000 lbs shock absorber, not adjustable
GEMMA hydraulic caliper
with copper-basis semi-metallic brake pads
GEMMA hydraulic
aluminum alloy brake lever with brake cut-off

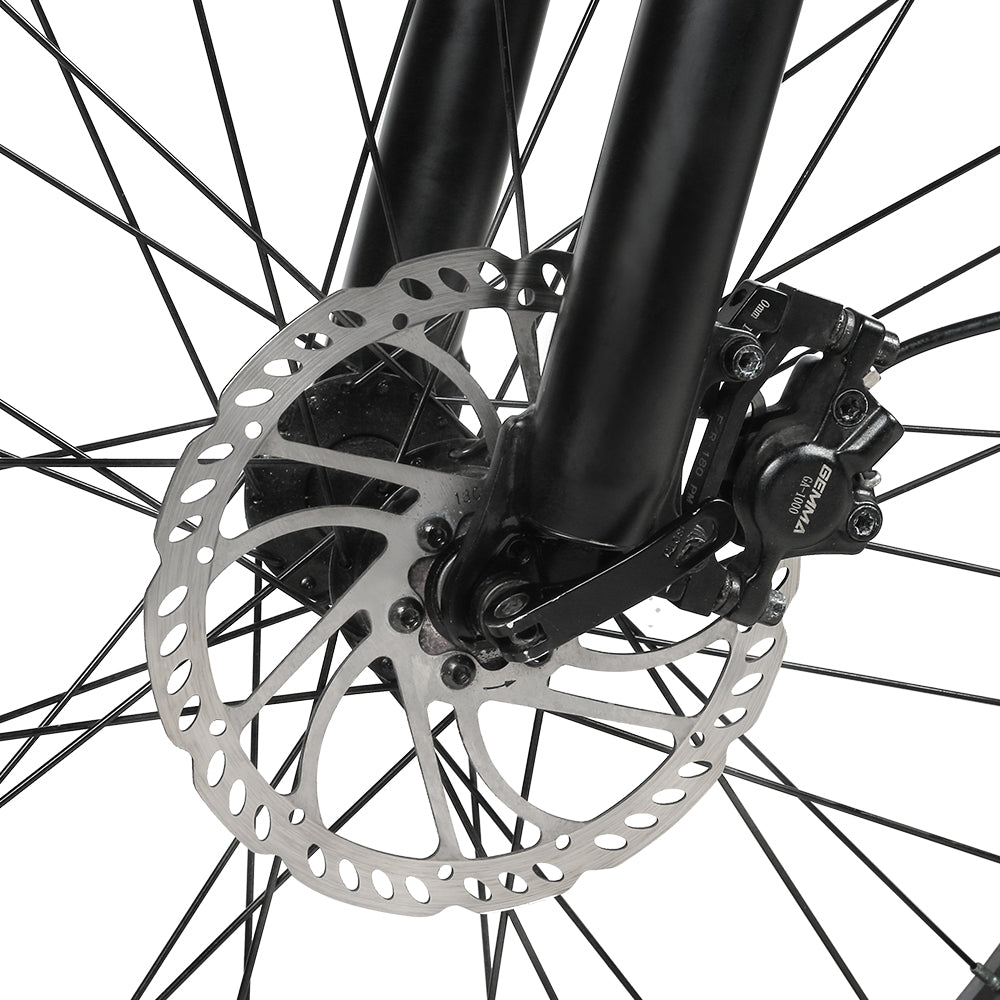

180mm stainless steel
front and rear disc rotors

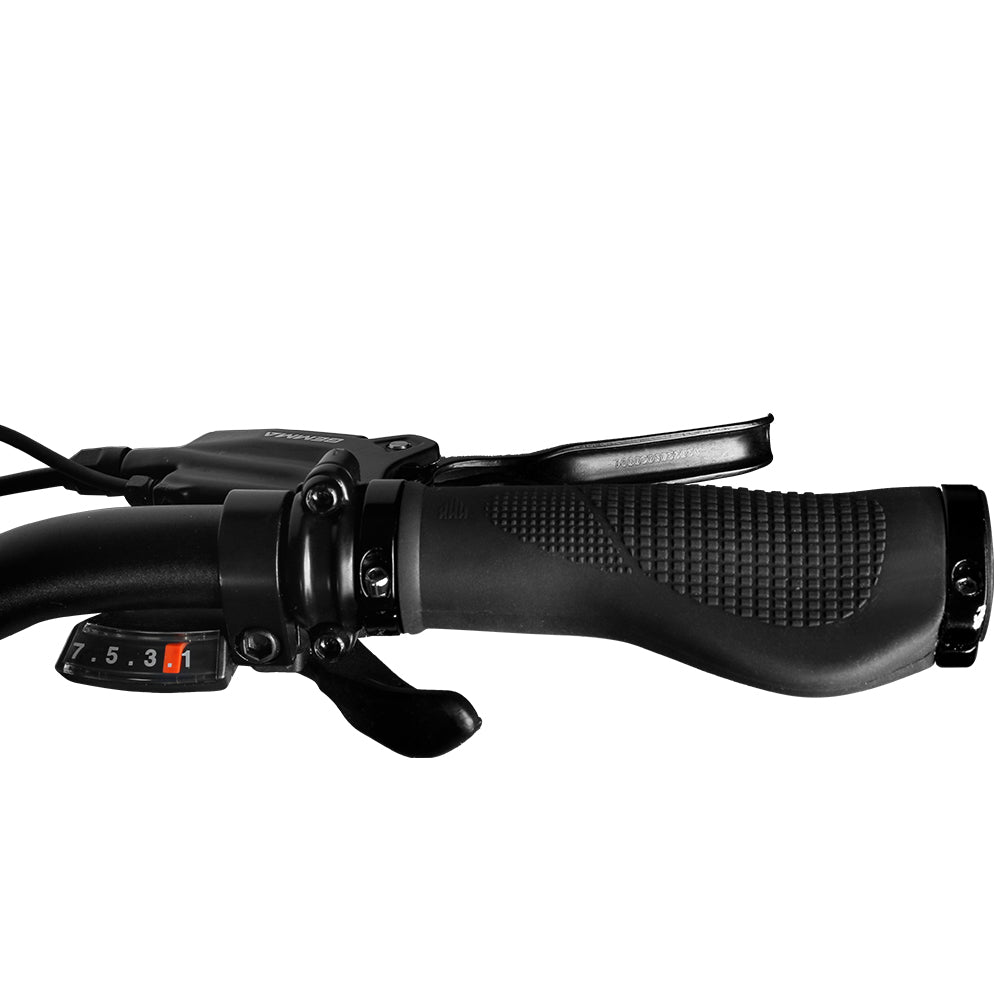

SHIMANO RevoShift
RS35 7-speed right shifter lever
SHIMANO Tourney
RD-TY300-SGS 6/7-speed derailleur

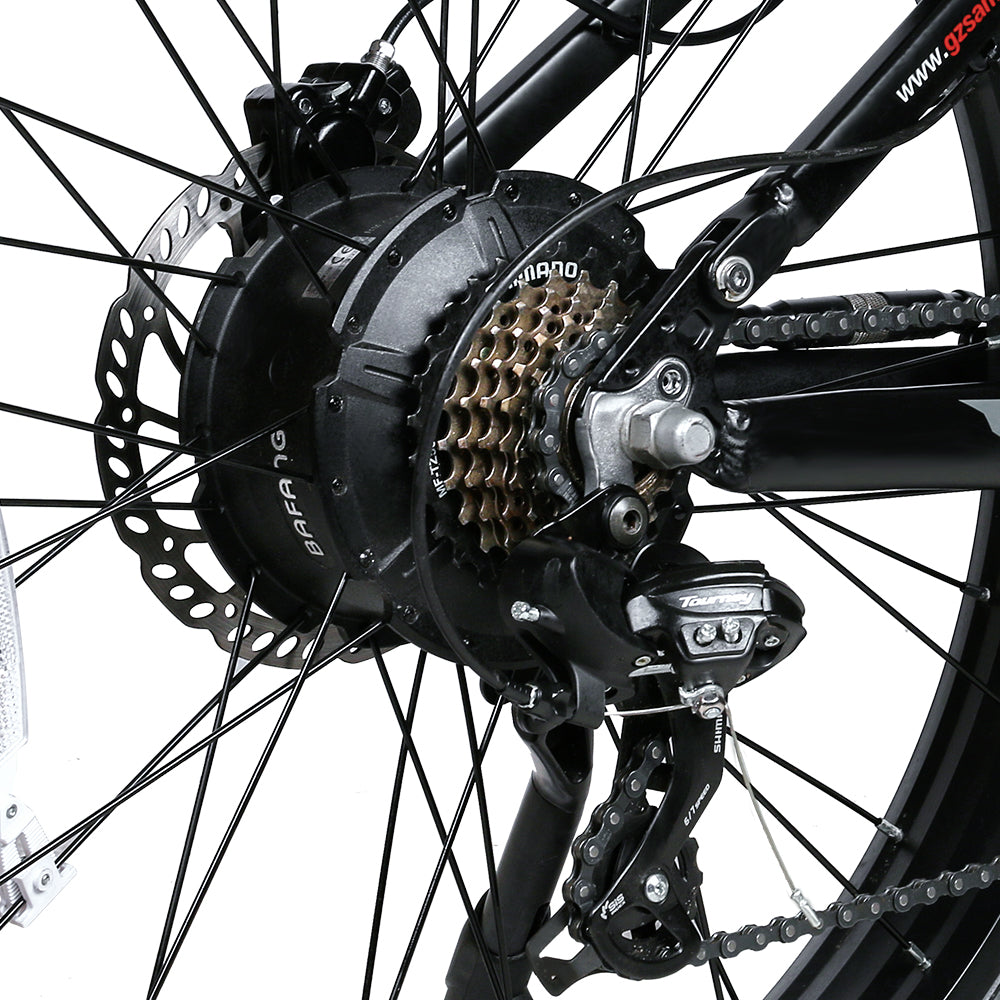

14-28T 7-speed
SHIMANO cast iron freewheel
26" * 4.0" fat tires
KENDA tube tires, 200Kpa/30PSI
36 spokes dual-wall
STARS CIRCLE aluminum alloy rims
48mm AV
Schrader valve stems
170mm cast iron cranks
48T chainring with aluminum guard
9/16" platform pedals
WELLGO cast iron MTB pedals
KMC chain
stainless steel with a titanium nitride coating

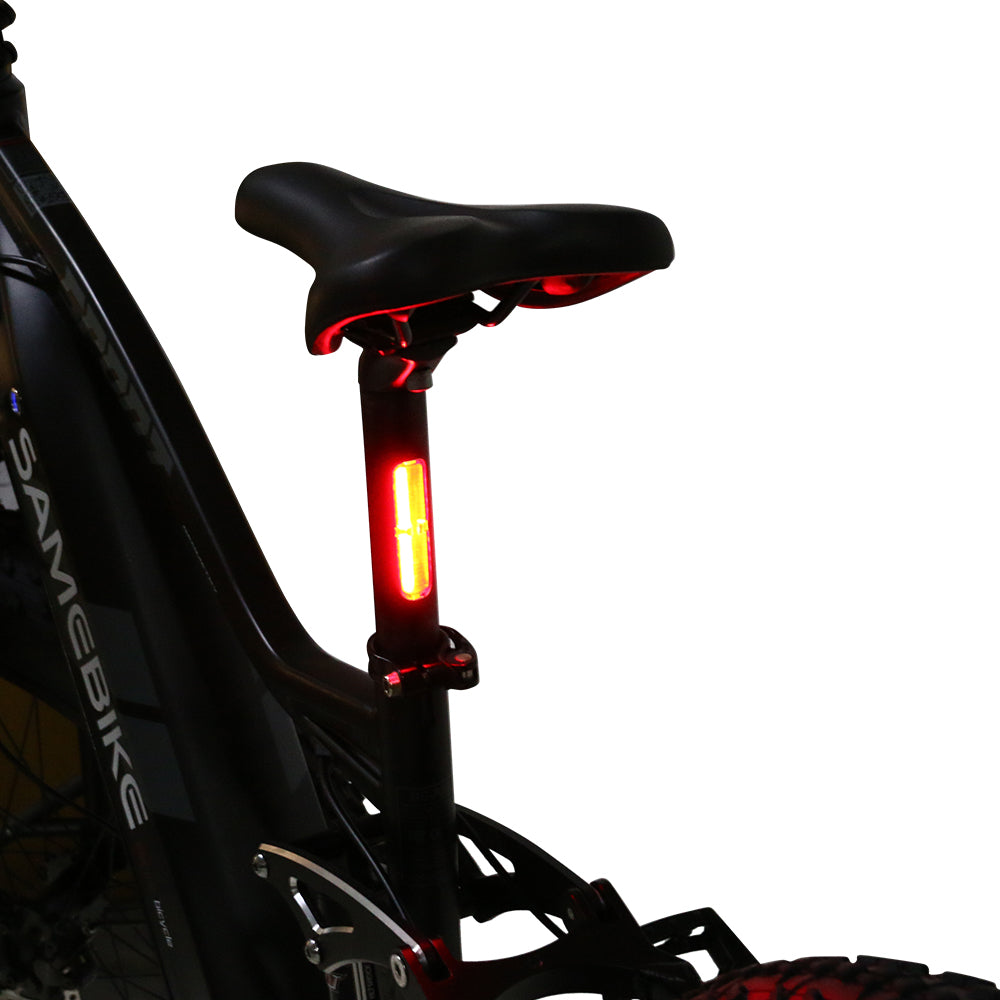

Soft TPE saddle seat
with pressure relief design
LED tail light integrated
aluminum alloy Seatpost, quick-release caliper
26.4" MTB handlebar
aluminum alloy with rubber ergonomic grips
Heavyduty kickstand
aluminum alloy with plastic foot
Pedal & tire spoke reflectors
color may be different in different batches
Not included
mounting holes reserved
