Rated 5.0 out of 5
Based on 2 reviews

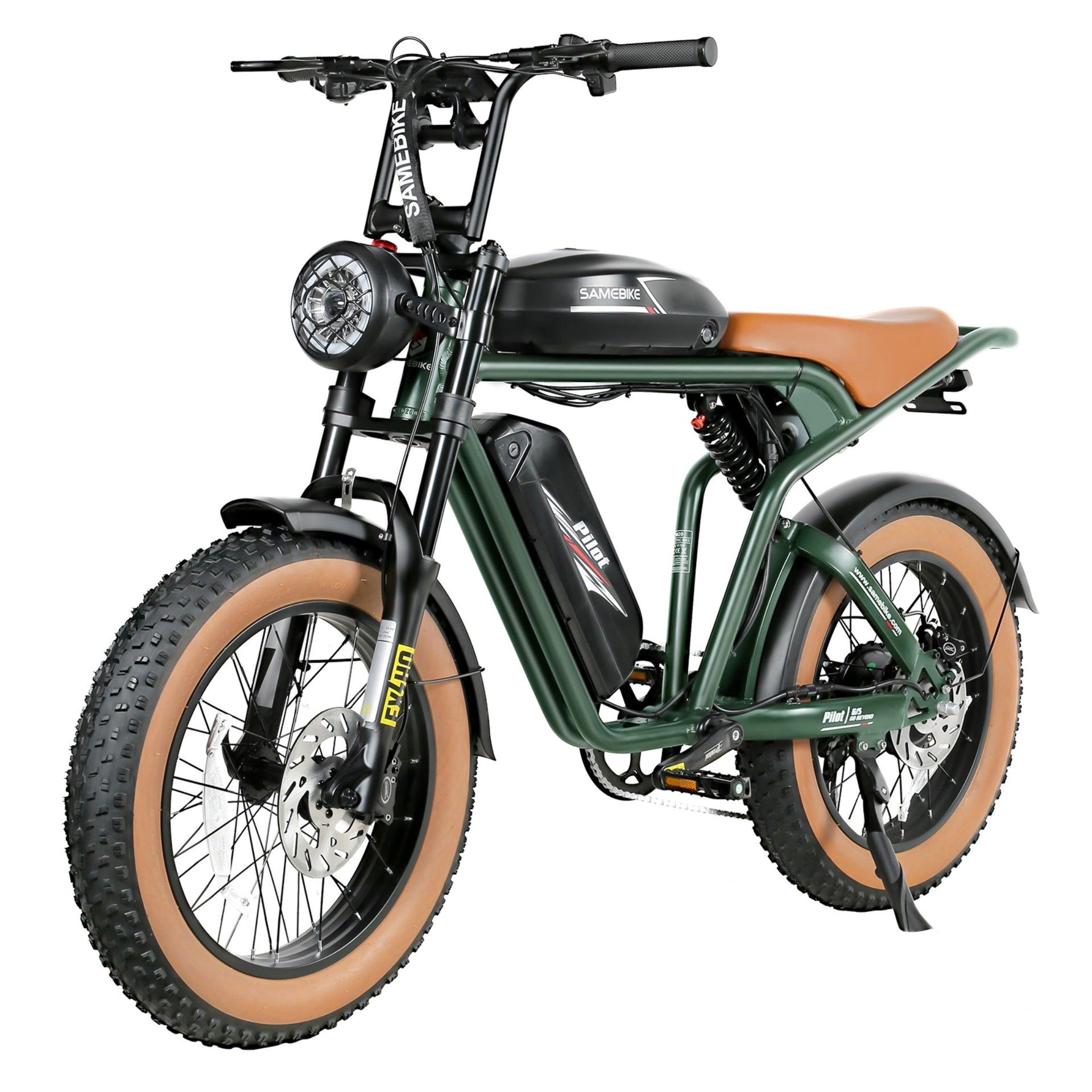

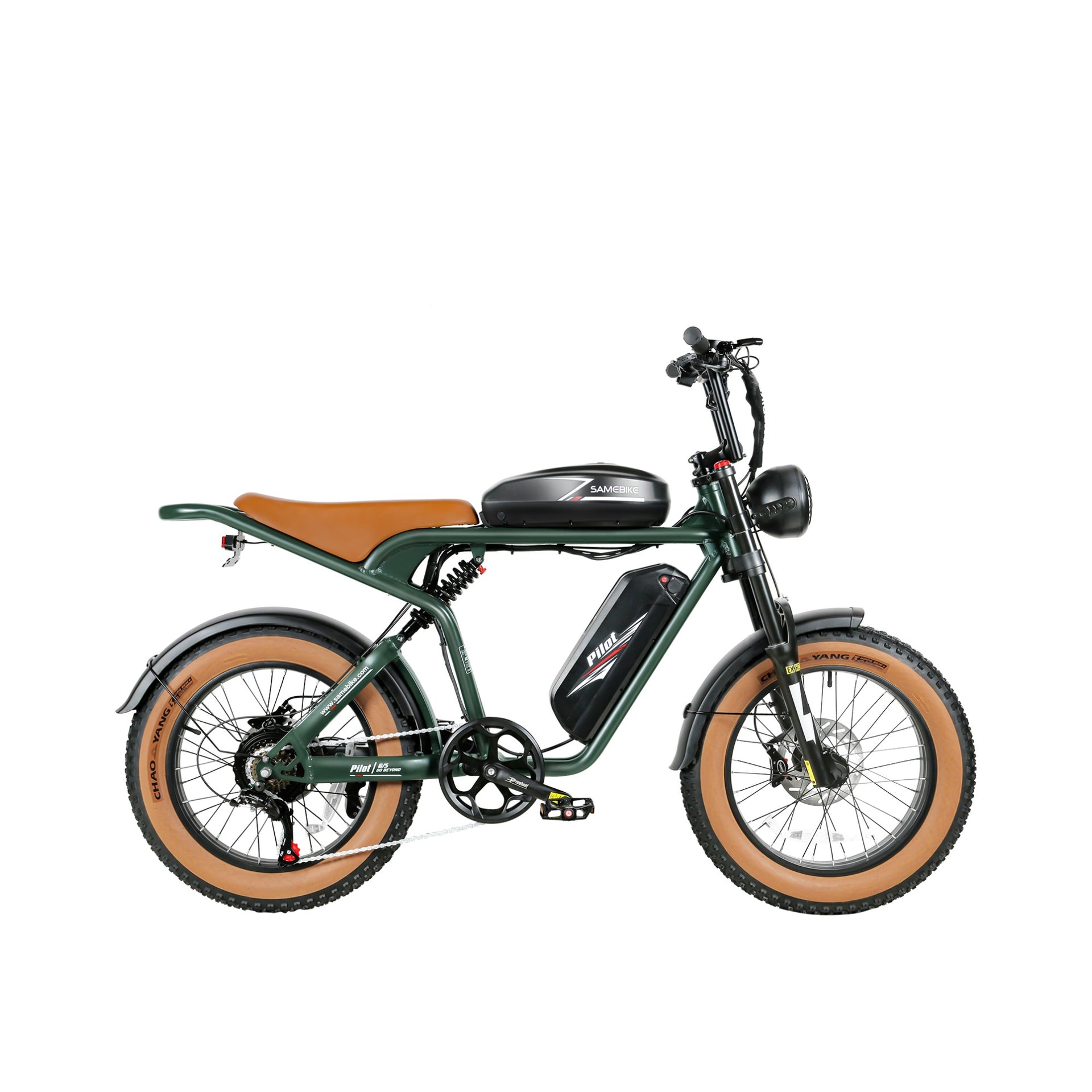

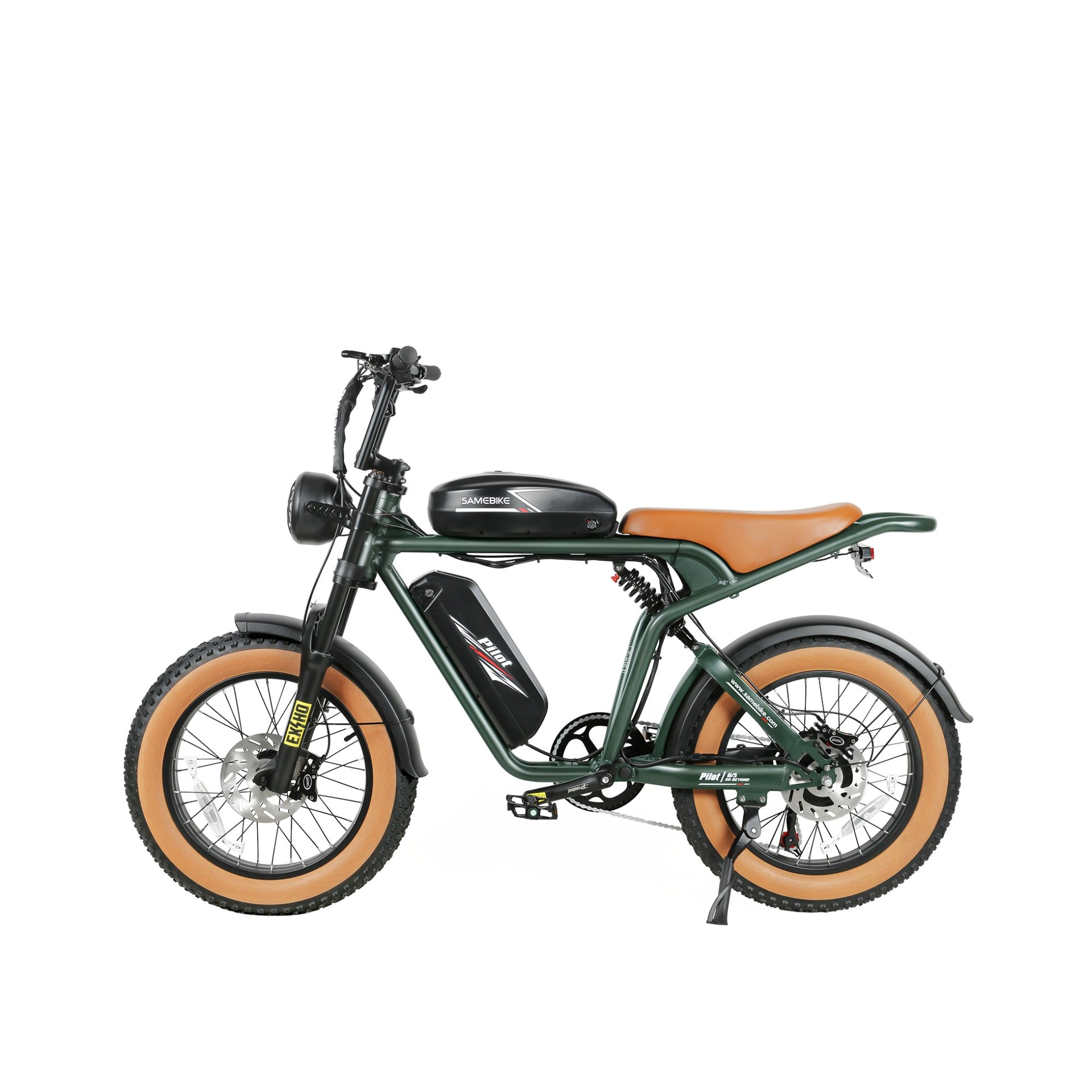

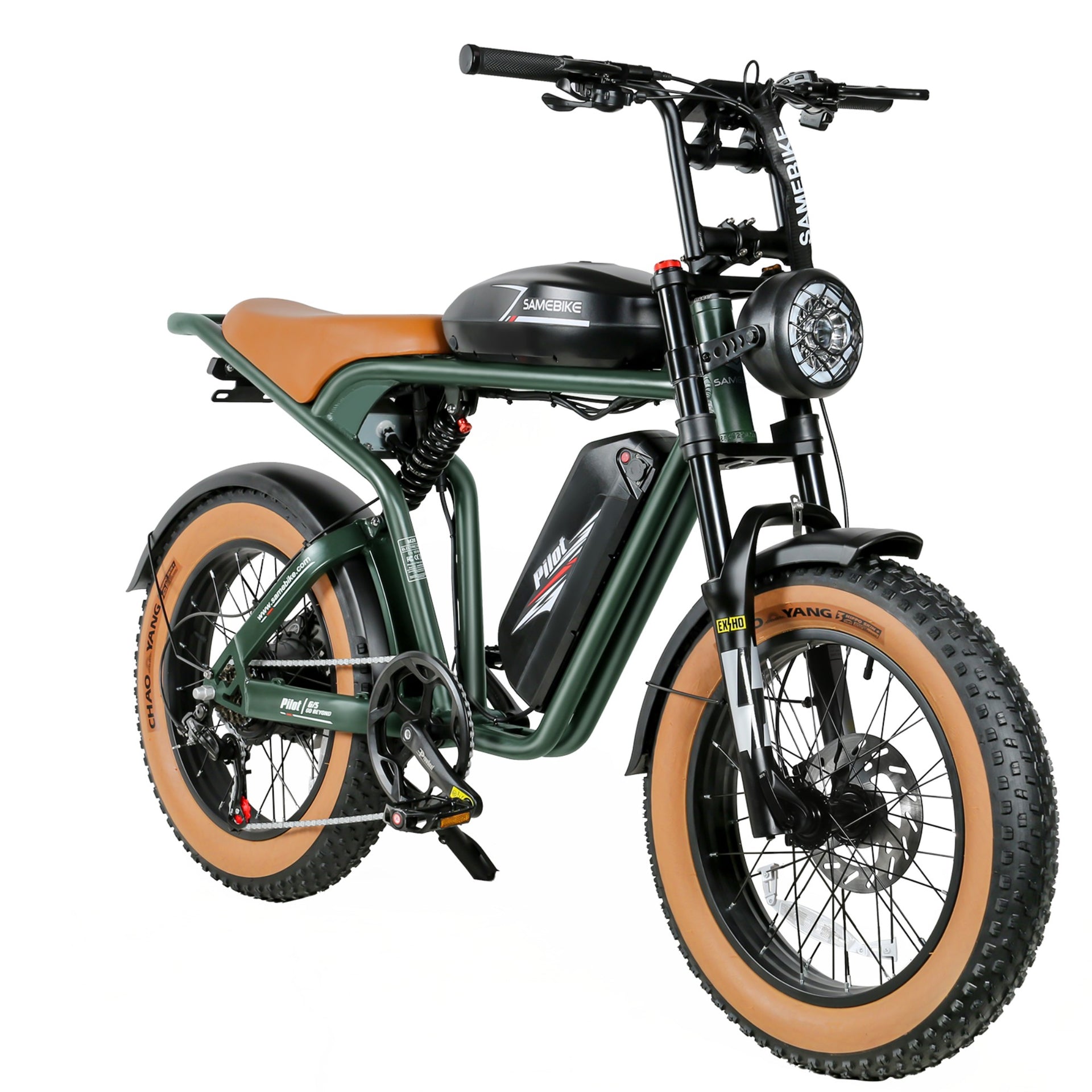

Samebike Pilot EX, Green

$1,799.00
$1,799.00 $1,899.00
Tax and Shipping included.

New eBikes $100 Off Code

SAM2024
✅ In Stock Now. Ship out in 2 business days.
Color RAL 6009 FIR GREEN
  • Klarna
  • Mastercard
  • Discover
  • Maestro
  • Diners Club
  • Visa
  • PayPal
  • American Express
  • Visa Electron

About the Pliot EX Bike

This is the range-extended (EX) version of the Samebike Pilot electric dirt bike has the same design concept but also have some different. As you can see, the double range with dual batteries, faster speed with the 1,200W motor in lighter-weighted frame, and more fun waiting for your exploring.

Frequently Asked Questions

Package List & Onwer's Tools

What's in the Package?

  • The Pilot EX Electric Bike * 1
  • Batteries * 2
  • Battery Charger * 1
  • Pedal Set * 1
  • Quick-release Skewer * 1
  • Seat Set * 1
  • Toolkit * 1
  • User Manual * 1

Other Resouces

Free Shipping to USA

Cost & Destination

Currently, we only offer FREE FedEx/UPS Ground shipping to the contiguous 48 states in the US. Do not process orders on weekends.

Shipping Time

Destination Processing time Shipping time
The United States 1-2 business days 3-12 business days

Local Pickup

Customers can come to our warehouses and pickup selected models.
There will be $50 off per bike for pickup orders.

Learn more about our SHIPPING POLICY

Returns & Warranty

Customers have 15 Days to experience and decide whether to keep the bike. To return an item without manufacturing defects, the customer is responsible for return shipping and restocking costs.

All bikes are covered by our all-inclusive warranty against all manufacturing defects for the original buyer/owner.

Parts Defective Period
Motor Not functional / coil burnt 1 Year
Battery Unable to charge / mileage per charge < 20% 1 Year
Controller Not functional / Error code 1 Year
Charger Not charging 1 Year
Display Error code 1 Year
Pedal-assist sensor No assistance /insensitive 1 Year
Lights Not lit 1 Year
Frame Deformation / desoldering / cracking 1 Year
Front fork Deformation / fracture / no shock absorption 1 Year
Seatpost Deformation / desoldering / cracking 1 Year
Handlebar Deformation / desoldering / cracking 1 Year
Stem Deformation / desoldering / cracking 1 Year
Headset Failure / unsmooth steering 1 Year
Brakes Failure / rebound blocked 1 Year
Brake disc Deformation / fracture 1 Year
Crankset Deformation / fracture 1 Year
Freewheel Deformation / detachment 1 Year
Derailleur Stuck / abnormal noise 1 Year
Shifter Stuck/abnormal noise 1 Year

1200W

Hub Motor

1,728Wh

Dual Batteries

20" * 4.0"

All-terrains Tires

6061 AL

Alloy Frame

7-Speed

SHIMANO Gears

Thumb

Throttle

1200W High-torque DC Hub Motor

For a dirt ebike, riders always expect quick and smooth acceleration. Samebike Pilot EX's 1200W geared hub motor with 90Nm instant torque will provide a thrilling and responsive ride. Working with the 20"*4.0" fat knobby tires, the Pilot can be ridden on a variety of terrain, from dirt tracks to rocky terrain to steep hills, providing a versatile and adaptable ride.

1,728Wh Parallel Dual Batteries

Just as important as fueling up your gas tank before a road trip, a good battery is important for your challenging trips and longer routes. Dual 48V 18Ah (36Ah in total) large-capacity Lithium-ion batteries with MSDS/ UN38.3/ CE certificated 21700 cells, tested to be safe and reliable working indoors or outdoors in 120℉, can ensure enough juice to conquer mountains and hills.

Custom YL-90T LCD Display

A functional computer/ instrument shows the riding information (including speed, miles, battery, gears,) and bike status (such as brake/ walk-mode/ headlight,) on the 4.2" colored LCD screen. The 5V 1A USB-A port integrated into the keyboard can charge your phone when the display is on. And the new display supports a login password, you can still ride the bike even if the key was lost.

All-around Improved Riding Experience

7-Speed Shifting System

The Shimano chain shifter can smoothly switch between 14-28T 7-speed gears at any time. Allowing pedal-assist models uses in any terrain or even climbing steep slopes doesn`t need motor assistance.

Hydraulic Shock Absorber

The hydraulic damping high-performance rear suspension can absorb up to 650 pounds of vibration energy with 50mm travel distance, providing protection for long-distance outdoor cycling.

Adjustable Front Suspension

The adjustable and lockable magnesium alloy suspension front fork allows for maximum suspension travel of 100mm. Effectively absorbing excessive vibration and bumps, thereby reducing wrist fatigue and discomfort.

Hydraulic Disc Brakes

Using hydraulic disc brakes with front and rear 180mm * 3.0mm motorcycle rotors, Samebike Pilot adopted customized semi-metal brake pads that provide strong braking force and can quickly stop under a load of 330 pounds to respond to emergency situations

10W High-bright Headlight

The headlights of Samebike Polit can obtain a larger field of view at night or in poor visibility, having for clear identification of obstacles ahead. The reflector of the headlight and built-in electronic horn constantly remind the oncoming bike of your presence, avoiding accidents caused by blurred vision, and thereby protecting your safety.

Custom Motorcycle Seat

The extended leather seats in black or brown allows carrying one passenger when necessary. High elastic filling sponge can provide a comfortable riding experience.

Brake Signal Tail Light

The red rear tail lights will light up synchronously with the front lights turned on. And when you grip whichever brake the tail light will flash to remind the person behind to maintain a secure distance.

26" BMX Handlebars

Unlike the common dirt bike, the Samebike Pilot has higher and wider BMX handlebars, making it easier to handle and smoother during turns

Rubber Non-slip Grips

The retro round grip made of rubber, paired with a thumb throttle and Shimano thumb derailleur shifter, helps you easily control balance and shift gears.

Answered Questions for Pilot EX

Do I have to register this bike?

Samebike bikes come to you with a max speed limit of 20mph, which means they are supervised as Class 2 bikes. That means you're not required to register it or get a license plate for it. But if you want to unlock the speed limit beyond 20MPH, you have to ask the local relative department if you need to register a license.

Do both batteries show up on the display or just one icon for both?

There's only one icon that will show up for both batteries. The batteries are connected to the controller through a battery equalizer. In this condition, the system will regard them (the equalizer and two batteries) as a whole big battery.

The bike seat is not adjustable. I'm 6ft. Would it be appropriate for me?

Of course, the bike structure is like many utility motorcycles. Even if your height is a little higher and the saddle height is unadjustable, you can still get the comfortable stack and reach distance by sitting a little backside on the seat. So the bike can fit people 170-210cm.

Is it easy to put together? Do I need someone to help with it?

The bike weighs 95 lbs, which is difficult for one to put forward in the package, you may need to ask help for someone else. But for one who wants to install the bike is very simple, because we already finished 85% pre-assembled, the remained part is not difficult and we have the full video to teach how to complete the parts. You can click the link to watch.
https://youtu.be/WJeYblQGhy8

Are the brakes reliable and effective?

Of course, the bike uses the Hydraulic dual-piston brake system, paired with copper-basis semi-metallic brake pads, and stainless steel disc rotors of 180mm motorcycle-grade adding thickness that will help you to stop your bike in minute.

How fast does it go on gravel roads and how fast does it go on grass and dirt?

We have not practically tested the bike's top speed on different terrains. In addition, the bike has is 20" * 4.0" fat tires. And can adapt to every terrain. In the driving of the 1,000W motor, Its speed can reach beyond 25 MPH(after unlocking the speed limit).

Is the bike easy to pedal home if the battery dies?

The difficulty is depending on your riding distance. As you can see, the bike weighs 95 lbs and is paired with 4.0" fat tires. Thus the special bike structure will doubtfully generate it more difficult to drive by pedal than a universal traditional bike. But it still has fitted the gears about Shimano 7-Speed 48T*14-28T, which can transfer your strength great. You still can choose the comfortable gear to turn on and advance easily, but you will make your body more tired if you are riding for a long time.

Is the throttle speed variable?

Yes, the speed of the bike`s throttle is changed with the PAS level. Notice, that the display shows the pedal-assist has 5 PAS levels, which means the pedal-assist and throttle both motor powers were set to five levels. Like this, you will have to adjust to five PAS levels to ride if you want to use the throttle to reach the top speed of the bike.

Can I choose the color of the seat and tires?

Not, We do not provide the service of automize bike colors temporarily. That all bikes already are assembled and packed to deposit in our warehouse, and we have not been able to open the package and change the parts. But we will sell the saddle and tires of different colors in the future. By then you can choose to buy it free.

Is there a way to change the side of the throttle? I personally prefer the throttle on the right side.

Usually, we don't recommend to change it. The Pilot bike has a left thumb throttle because it will interfere with the Shimano Thumb Shifter if on the right.

Could someone 4’11 ride it?

We're sorry to let you know the Pilot Bike is too big for a rider in 4'11. As you can see on our website, the seat height of it is 32.5" which means the inseam of the rider should be 29.8" or longer.

I want an ebike to ride to work. There are a couple large hills I have to climb. How does this bike do climbing hills?

The Pilot bike can climb hills up to 20 degrees in throttle mode. With the Shimano 7-Speed shifting system, you can climb 40 degrees with pedal assist.

If I were to buy the pilot EX instead, could I buy a 2nd motor as well and attach it to the front assembly of the EX and have make it a dual motor?

No, you can't attach another motor to the Pilot EX bike. The controller and motor of the Pilot EX bike are not compatible with the SR version.

Does this have a brushless motor?

Yes, the motor of the Pilot EX bike is a brushless motor.

What is the charge time from 0% to full charge?

The output of the charger 54.6V 3amp. It usually takes 5-7 hours to charge the battery from 0% to full.

Ask a Question

Geometry & Technical Specifications

    Bike Geometry

  • Recommended rider height

    5'7" - 6'11"

    170cm - 210cm
  • Handlebar height

    44.3"

    112.5cm
  • Seat height

    32.5"

    Unadjustable MOPED Saddle
  • Standover height

    32.5"

    MOPED frame
  • Reach distance

    18.8"

    Ample operate space
  • Total length

    68.9"

  • Wheelbsase

    43.3"

  • Chainstay

    17"

  • Tire diameter

    20"

  • Max tire width

    4.5"

  • Head tube length

    6.7"

  • Effective toptube

    21"

  • Seat tube Length

    No seat tube

  • Head tube angle

    70°

  • Handlebar width

    26"

    Basic Specifications

  • Ebike class

    Class 2 electric bike

    The bike comes with a 20mph speed limit for both pedal-assist and throttle modes
  • Top speed

    32 Mph without limit

    Customers can disable the top speed limit on display to go over 20 mph
  • Range per charge

    120 - 128 Miles pedal-assist

    50% default assist rate. 60 - 64 miles percharge for throttle-only riding
  • Motor gears

    5 Levels assist

    For both pedal-assist and throttle modes
  • Payload capacity

    330 Lbs

    DO NOT recommend carrying passengers
  • Bike weight

    86 Lbs (39kg) in total

    With both batteries attached
  • Brake type

    Hydraulic disc brake

    Premium 3.0mm thickness disc brake
  • Water-proof level

    IP54 for outdoor use

    Protected from water spray from any direction
  • Bike gradeability

    20° for dry dirt roads

    with throttle only, or up to 40° with pedal

    Electronic Parts

  • Motor

    48V 1000W DC

    brushless geared hub motor, max torque > 90N·m
  • Controller

    48V 28±1A 12MOSFET

    fat tire motor controller, cut-off voltage: 39V
  • Display

    4.2" Landscape LCD

    YL-90T center mounted LCD meter color display
  • Batteries

    48V 36Ah(total) dual batteries

    LISHEN 21700 lithium battery cells
  • Charger

    54.6V 3A DC 2.1mm

    impulse-output charger with full-charge cut-off
  • Lights

    10W bright headlight

    with a built-in electric horn, LED rear brake light
  • Throttle

    Left thumb throttle

    slightly delayed response/boot in default
  • Sensor

    Cadence pedal-assist sensor

    easier to activate and keep motor engage
  • Wiring

    Waterproof wiring

    semi-internal cable routing, circular connectors

    Bicycle Components

  • Frame

    6061 Aluminum alloy

    20" shock absorbing motorcycle frame
  • Front fork

    Hydraulic 100mm tavel suspension

    Adjustable magnesium alloy front fork with lockout.
  • Shock absorber

    Hydraulic shock absorber

    650 Lbs dapming with 50mm travel
  • Handlebar

    26" BMX handlebar

    aluminum alloy with rubber ergonomic grips
  • Brake caliper

    DYISLAND hydraulic

    with copper-basis semi-metallic brake pads
  • Brake lever

    DYISLAND hydraulic

    aluminum alloy brake lever with brake cut-off
  • Brake rotors

    180mm stainless steel

    3.0mm thickness motorcycle rotors
  • Shifter

    SHIMANO revoShift

    SL-M315 7-speed right shifter lever
  • Derailleur

    SHIMANO tourney

    RD-TZ500-GS 6/7-speed derailleur
  • Freewheel

    14-28T 7-speed

    SHIMANO cast iron freewheel
  • Tires

    20" * 4.0" Fat tires

    CHAOYANG tube tires, 270-440Kpa/40-65PSI
  • Rims

    36 Spokes dual-wall

    STARS CIRCLE aluminum alloy rims
  • Valve

    48mm AV

    Schrader valve stems
  • Crankset

    170mm iron cranks

    48T chainring with aluminum guard
  • Pedal

    9/16" platform pedals

    WELLGO cast iron MTB pedals
  • Chain

    KMC chain

    stainless steel with a titanium nitride coating
  • Seat

    Extended motorcycle saddle

    Sponge filled artificial leather seat.
  • Kickstand

    Heavyduty kickstand

    aluminum alloy with plastic foot
  • Fenders

    Front and rear

    full-coverage plastic fenders
  • Racks

    No racks

    Not provided
  • Reflectors

    Spoke tire reflectors

    pedal reflectors
