Reviewed by jose v.
Verified Buyer
Review posted
I recommend this product
Awesome bike.
Awesome bike, fast, and the looks are amazing and with 2 batteries you can ride for hours. Super cool..
Loading...
Was this helpful?
Rated 5.0 out of 5

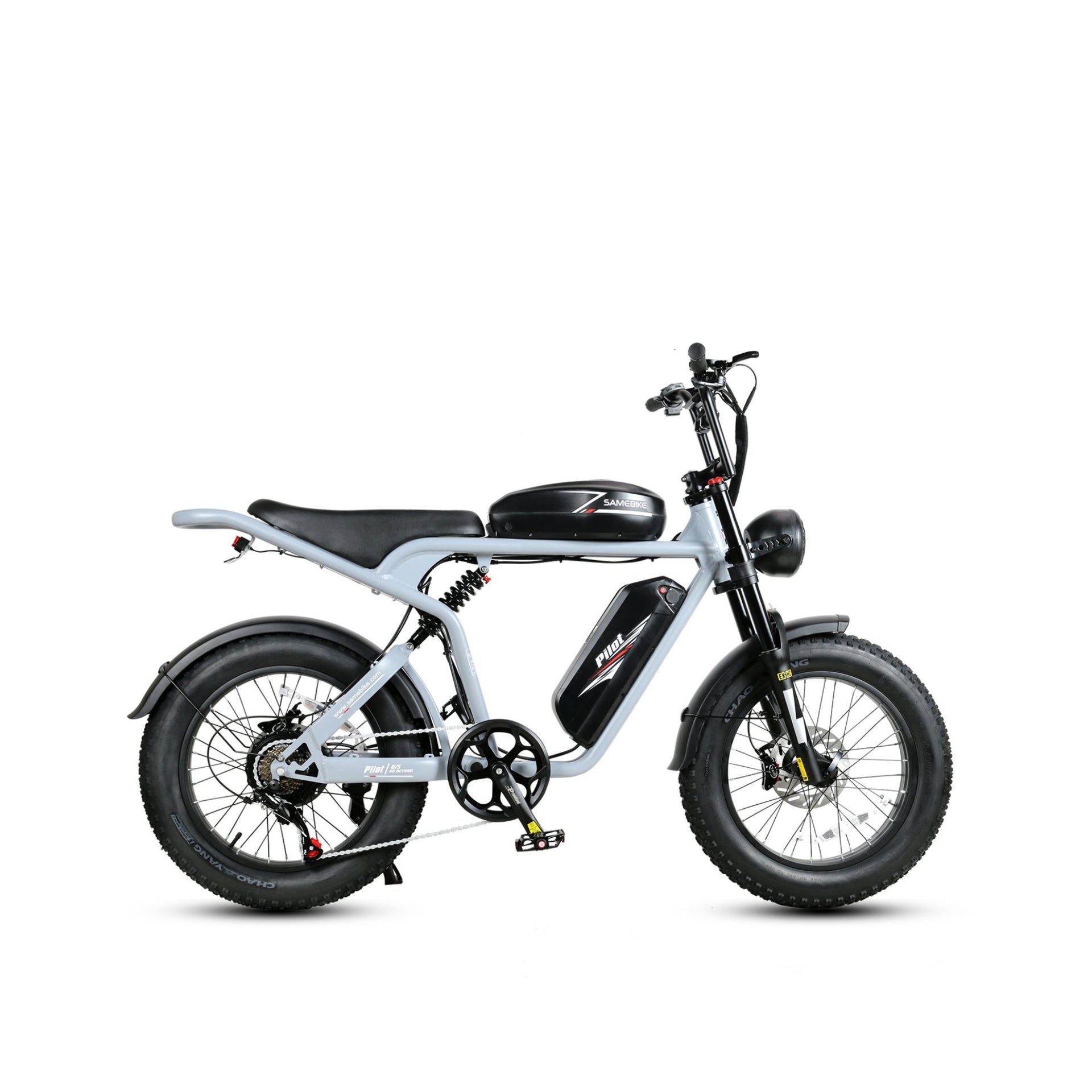

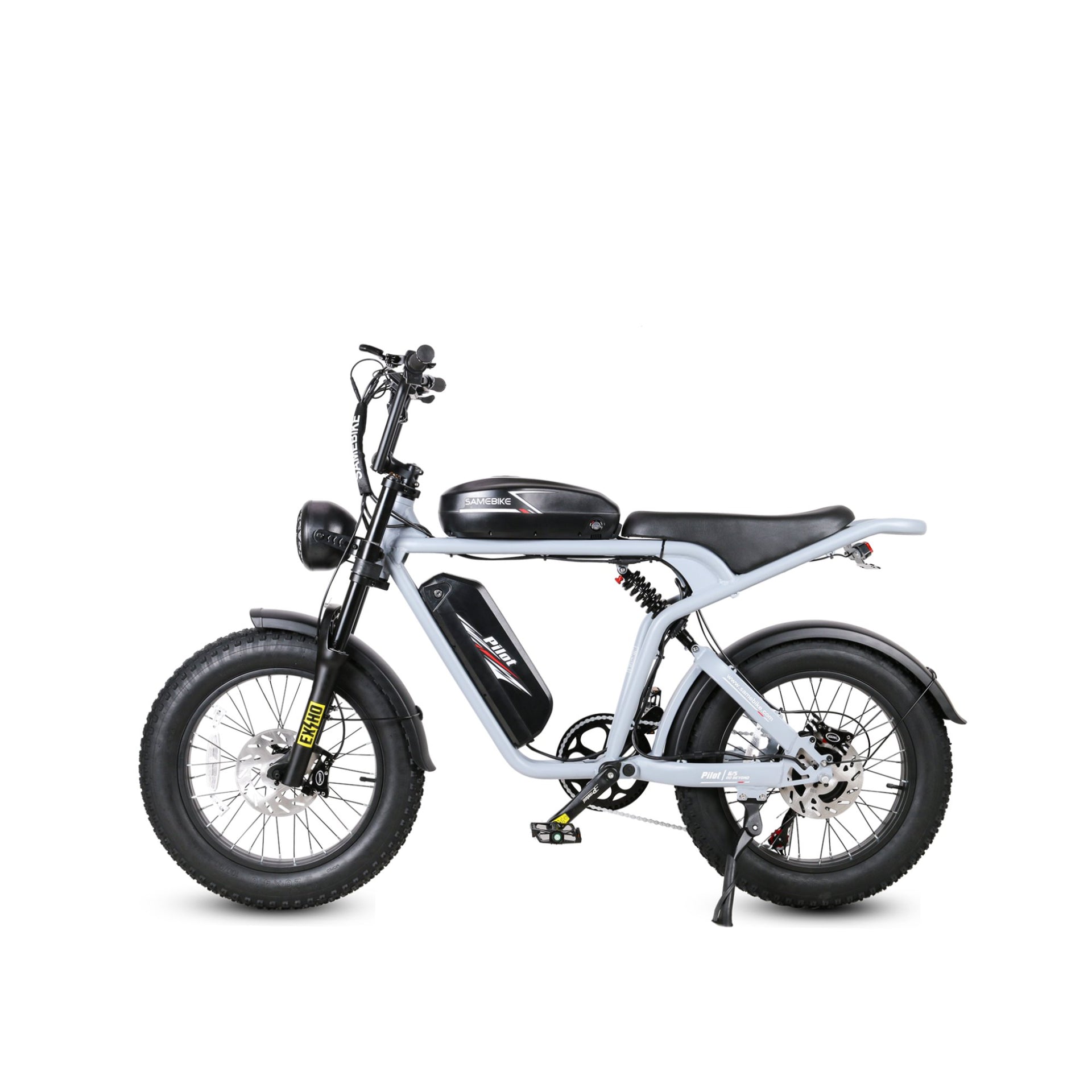

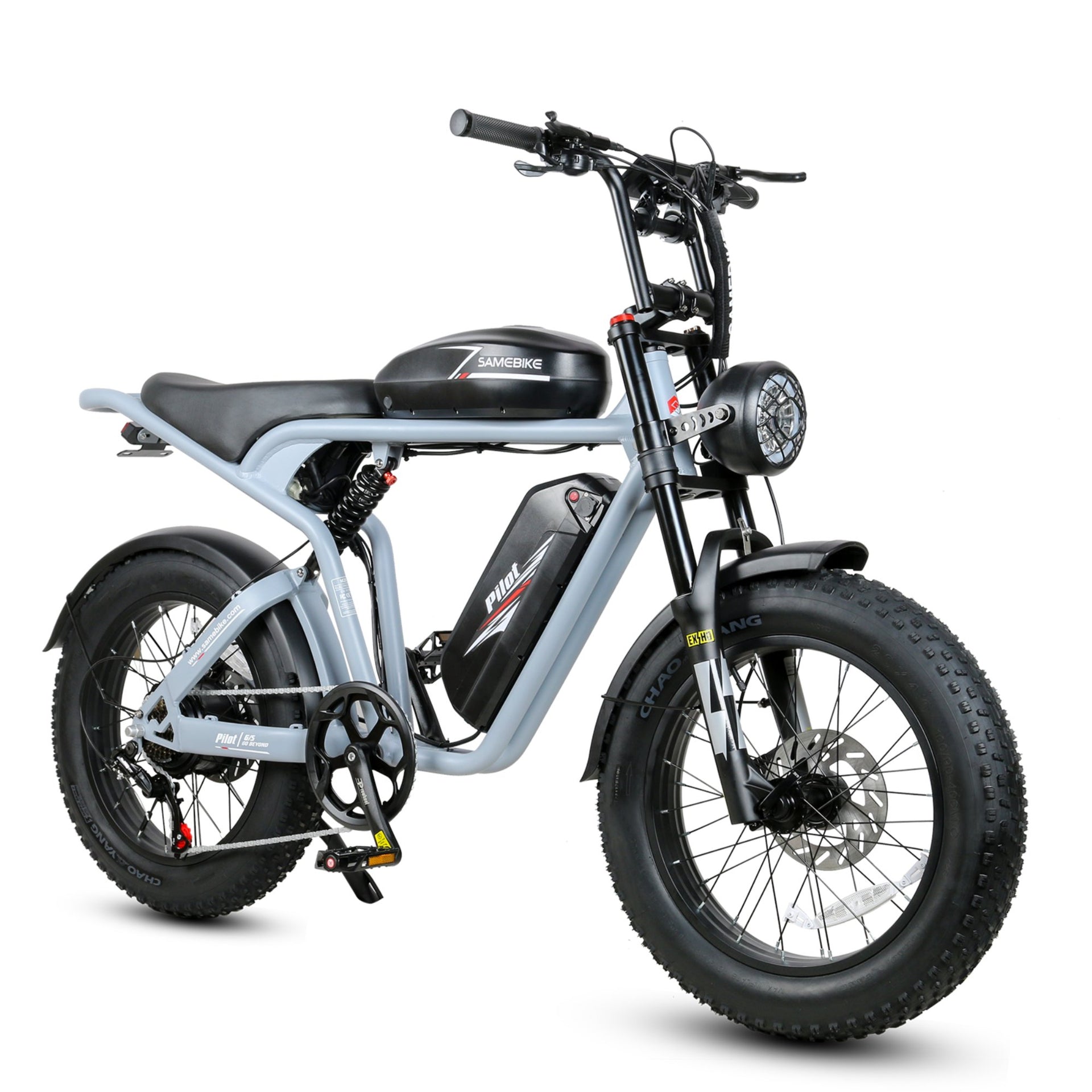

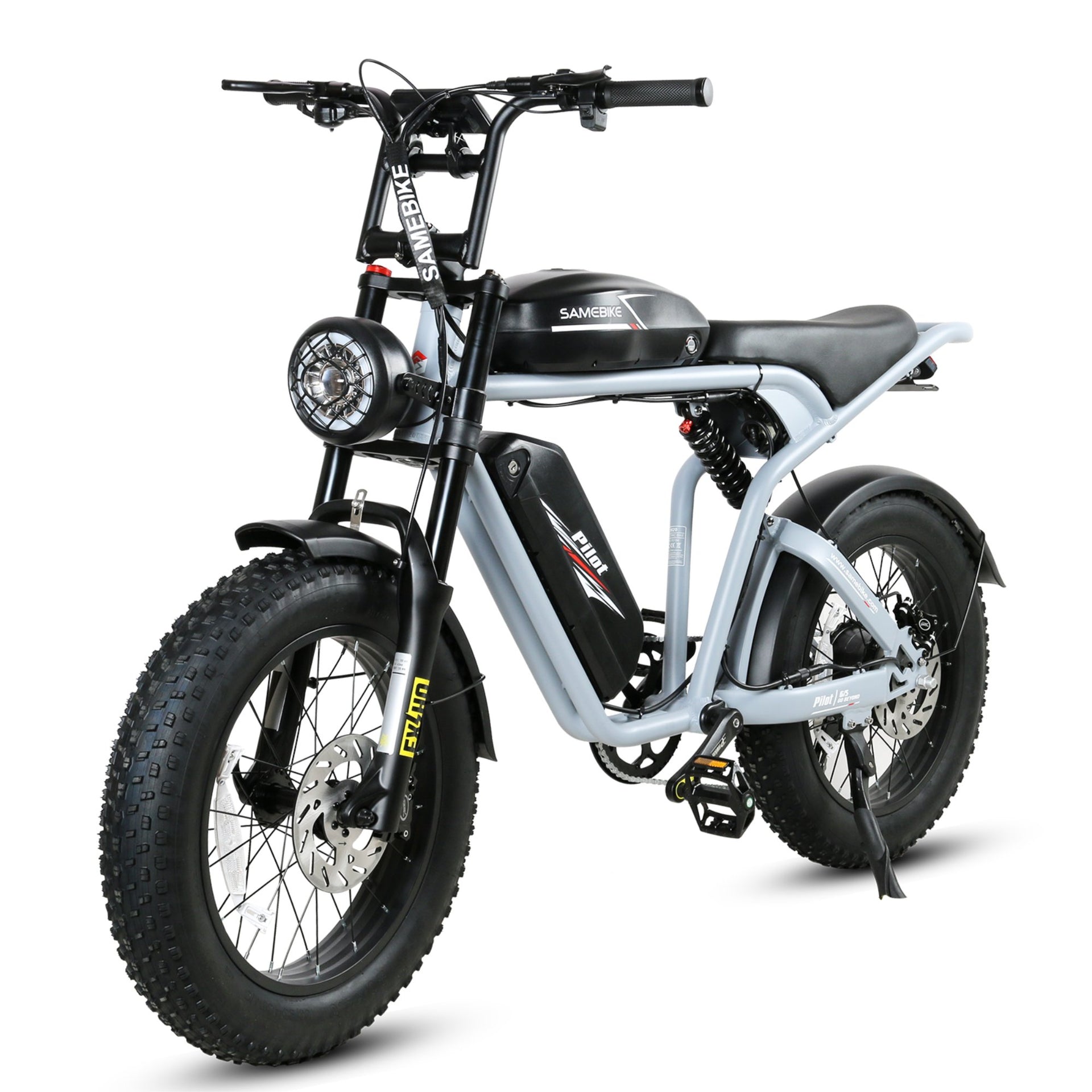

Samebike Pilot EX, Grey
$1,499.00
$1,499.00
$1,899.00
Tax and
Shipping included.
New eBikes $100 Off Code
SAM2024
✅ In Stock Now. Ship out in 2 business days.
EX - Dual Batteries & 1,200W Motor
About the Pliot EX Bike
This is the range-extended (EX) version of the Samebike Pilot electric dirt bike has the same design concept but also have some different. As you can see, the double range with dual batteries, faster speed with the 1,200W motor in lighter-weighted frame, and more fun waiting for your exploring.
Package List & Owner's Tools
What's in the Package?
- The Pilot EX Electric Bike * 1
- Batteries * 2
- Battery Charger * 1
- Pedal Set * 1
- Quick-release Skewer * 1
- Seat Set * 1
- Toolkit * 1
- User Manual * 1
Other Resouces
Free Shipping to USA
Cost & Destination
Currently, we only offer FREE FedEx/UPS Ground shipping to the contiguous 48 states in the US. Do not process orders on weekends.
Shipping Time
| Destination | Processing time | Shipping time |
| The United States | 1-2 business days | 3-12 business days |
Local Pickup
Customers can come to our warehouses and pickup selected models.There will be $50 off per bike for pickup orders.
Learn more about our SHIPPING POLICY
Returns & Warranty
Customers have 15 Days to experience and decide whether to keep the bike. To return an item without manufacturing defects, the customer is responsible for return shipping and restocking costs.
All bikes are covered by our all-inclusive warranty against all manufacturing defects for the original buyer/owner.
| Parts | Defective | Period |
| Motor | Not functional / coil burnt | 1 Year |
| Battery | Unable to charge / mileage per charge < 20% | 1 Year |
| Controller | Not functional / Error code | 1 Year |
| Charger | Not charging | 1 Year |
| Display | Error code | 1 Year |
| Pedal-assist sensor | No assistance /insensitive | 1 Year |
| Lights | Not lit | 1 Year |
| Frame | Deformation / desoldering / cracking | 1 Year |
| Front fork | Deformation / fracture / no shock absorption | 1 Year |
| Seatpost | Deformation / desoldering / cracking | 1 Year |
| Handlebar | Deformation / desoldering / cracking | 1 Year |
| Stem | Deformation / desoldering / cracking | 1 Year |
| Headset | Failure / unsmooth steering | 1 Year |
| Brakes | Failure / rebound blocked | 1 Year |
| Brake disc | Deformation / fracture | 1 Year |
| Crankset | Deformation / fracture | 1 Year |
| Freewheel | Deformation / detachment | 1 Year |
| Derailleur | Stuck / abnormal noise | 1 Year |
| Shifter | Stuck/abnormal noise | 1 Year |
Powerful and Lasting Riding System
1200W High-torque DC Hub Motor
For a dirt ebike, riders always expect quick and smooth acceleration. Samebike Pilot EX's 1200W geared hub motor with 90Nm instant torque will provide a thrilling and responsive ride. Working with the 20"*4.0" fat knobby tires, the Pilot can be ridden on a variety of terrain, from dirt tracks to rocky terrain to steep hills, providing a versatile and adaptable ride.
1,728Wh Parallel Dual Batteries
Just as important as fueling up your gas tank before a road trip, a good battery is important for your challenging trips and longer routes. Dual 48V 18Ah (36Ah in total) large-capacity Lithium-ion batteries with MSDS/ UN38.3/ CE certificated 21700 cells, tested to be safe and reliable working indoors or outdoors in 120℉, can ensure enough juice to conquer mountains and hills.
Custom YL-90T LCD Display
A functional computer/ instrument shows the riding information (including speed, miles, battery, gears,) and bike status (such as brake/ walk-mode/ headlight,) on the 4.2" colored LCD screen. The 5V 1A USB-A port integrated into the keyboard can charge your phone when the display is on. And the new display supports a login password, you can still ride the bike even if the key was lost.
All-around Improved Riding Experience
7-Speed Shifting System
The Shimano chain shifter can smoothly switch between 14-28T 7-speed gears at any time. Allowing pedal-assist models uses in any terrain or even climbing steep slopes doesn`t need motor assistance.
Hydraulic Shock Absorber
The hydraulic damping high-performance rear suspension can absorb up to 650 pounds of vibration energy with 50mm travel distance, providing protection for long-distance outdoor cycling.
Adjustable Front Suspension
The adjustable and lockable magnesium alloy suspension front fork allows for maximum suspension travel of 100mm. Effectively absorbing excessive vibration and bumps, thereby reducing wrist fatigue and discomfort.
Hydraulic Disc Brakes
Using hydraulic disc brakes with front and rear 180mm * 3.0mm motorcycle rotors, Samebike Pilot adopted customized semi-metal brake pads that provide strong braking force and can quickly stop under a load of 330 pounds to respond to emergency situations
10W High-bright Headlight
The headlights of Samebike Polit can obtain a larger field of view at night or in poor visibility, having for clear identification of obstacles ahead. The reflector of the headlight and built-in electronic horn constantly remind the oncoming bike of your presence, avoiding accidents caused by blurred vision, and thereby protecting your safety.
Custom Motorcycle Seat
The extended leather seats in black or brown allows carrying one passenger when necessary. High elastic filling sponge can provide a comfortable riding experience.
Brake Signal Tail Light
The red rear tail lights will light up synchronously with the front lights turned on. And when you grip whichever brake the tail light will flash to remind the person behind to maintain a secure distance.
26" BMX Handlebars
Unlike the common dirt bike, the Samebike Pilot has higher and wider BMX handlebars, making it easier to handle and smoother during turns
Rubber Non-slip Grips
The retro round grip made of rubber, paired with a thumb throttle and Shimano thumb derailleur shifter, helps you easily control balance and shift gears.
Answered Questions for Pilot EX
Do I have to register this bike?
Samebike bikes come to you with a max speed limit of 20mph, which means they are supervised as Class 2 bikes. That means you're not required to register it or get a license plate for it. But if you want to unlock the speed limit beyond 20MPH, you have to ask the local relative department if you need to register a license.
Do both batteries show up on the display or just one icon for both?
There's only one icon that will show up for both batteries. The batteries are connected to the controller through a battery equalizer. In this condition, the system will regard them (the equalizer and two batteries) as a whole big battery.
The bike seat is not adjustable. I'm 6ft. Would it be appropriate for me?
Of course, the bike structure is like many utility motorcycles. Even if your height is a little higher and the saddle height is unadjustable, you can still get the comfortable stack and reach distance by sitting a little backside on the seat. So the bike can fit people 170-210cm.
Is it easy to put together? Do I need someone to help with it?
The bike weighs 95 lbs, which is difficult for one to put forward in the package, you may need to ask help for someone else. But for one who wants to install the bike is very simple, because we already finished 85% pre-assembled, the remained part is not difficult and we have the full video to teach how to complete the parts. You can click the link to watch.
https://youtu.be/WJeYblQGhy8
Are the brakes reliable and effective?
Of course, the bike uses the Hydraulic dual-piston brake system, paired with copper-basis semi-metallic brake pads, and stainless steel disc rotors of 180mm motorcycle-grade adding thickness that will help you to stop your bike in minute.
How fast does it go on gravel roads and how fast does it go on grass and dirt?
We have not practically tested the bike's top speed on different terrains. In addition, the bike has is 20" * 4.0" fat tires. And can adapt to every terrain. In the driving of the 1,000W motor, Its speed can reach beyond 25 MPH(after unlocking the speed limit).
Is the bike easy to pedal home if the battery dies?
The difficulty is depending on your riding distance. As you can see, the bike weighs 95 lbs and is paired with 4.0" fat tires. Thus the special bike structure will doubtfully generate it more difficult to drive by pedal than a universal traditional bike. But it still has fitted the gears about Shimano 7-Speed 48T*14-28T, which can transfer your strength great. You still can choose the comfortable gear to turn on and advance easily, but you will make your body more tired if you are riding for a long time.
Is the throttle speed variable?
Yes, the speed of the bike`s throttle is changed with the PAS level. Notice, that the display shows the pedal-assist has 5 PAS levels, which means the pedal-assist and throttle both motor powers were set to five levels. Like this, you will have to adjust to five PAS levels to ride if you want to use the throttle to reach the top speed of the bike.
Can I choose the color of the seat and tires?
Not, We do not provide the service of automize bike colors temporarily. That all bikes already are assembled and packed to deposit in our warehouse, and we have not been able to open the package and change the parts. But we will sell the saddle and tires of different colors in the future. By then you can choose to buy it free.
Is there a way to change the side of the throttle? I personally prefer the throttle on the right side.
Usually, we don't recommend to change it. The Pilot bike has a left thumb throttle because it will interfere with the Shimano Thumb Shifter if on the right.
Could someone 4’11 ride it?
We're sorry to let you know the Pilot Bike is too big for a rider in 4'11. As you can see on our website, the seat height of it is 32.5" which means the inseam of the rider should be 29.8" or longer.
I want an ebike to ride to work. There are a couple large hills I have to climb. How does this bike do climbing hills?
The Pilot bike can climb hills up to 20 degrees in throttle mode. With the Shimano 7-Speed shifting system, you can climb 40 degrees with pedal assist.
If I were to buy the pilot EX instead, could I buy a 2nd motor as well and attach it to the front assembly of the EX and have make it a dual motor?
No, you can't attach another motor to the Pilot EX bike. The controller and motor of the Pilot EX bike are not compatible with the SR version.
Does this have a brushless motor?
Yes, the motor of the Pilot EX bike is a brushless motor.
What is the charge time from 0% to full charge?
The output of the charger 54.6V 3amp. It usually takes 5-7 hours to charge the battery from 0% to full.
Ask a Question
Geometry & Technical Specifications
-
Recommended rider height
5'7" - 6'11"
-
Handlebar height
44.3"
-
Seat height
32.5"
-
Standover height
32.5"
-
Reach distance
18.8"
-
Total length
68.9"
-
Wheelbsase
43.3"
-
Chainstay
17"
-
Tire diameter
20"
-
Max tire width
4.5"
-
Head tube length
6.7"
-
Effective toptube
21"
-
Seat tube Length
No seat tube
-
Head tube angle
70°
-
Handlebar width
26"
Bike Geometry
-
Ebike class
Class 2 electric bike
-
Top speed
32 Mph without limit
-
Range per charge
120 - 128 Miles pedal-assist
-
Motor gears
5 Levels assist
-
Payload capacity
330 Lbs
-
Bike weight
86 Lbs (39kg) in total
-
Brake type
Hydraulic disc brake
-
Water-proof level
IP54 for outdoor use
-
Bike gradeability
20° for dry dirt roads
Basic Specifications
-
Motor
48V 1000W DC
-
Controller
48V 28±1A 12MOSFET
-
Display
4.2" Landscape LCD
-
Batteries
48V 36Ah(total) dual batteries
-
Charger
54.6V 3A DC 2.1mm
-
Lights
10W bright headlight
-
Throttle
Left thumb throttle
-
Sensor
Cadence pedal-assist sensor
-
Wiring
Waterproof wiring
Electronic Parts
-
Frame
6061 Aluminum alloy
-
Front fork
Hydraulic 100mm tavel suspension
-
Shock absorber
Hydraulic shock absorber
-
Handlebar
26" BMX handlebar
-
Brake caliper
DYISLAND hydraulic
-
Brake lever
DYISLAND hydraulic
-
Brake rotors
180mm stainless steel
-
Shifter
SHIMANO revoShift
-
Derailleur
SHIMANO tourney
-
Freewheel
14-28T 7-speed
-
Tires
20" * 4.0" Fat tires
-
Rims
36 Spokes dual-wall
-
Valve
48mm AV
-
Crankset
170mm iron cranks
-
Pedal
9/16" platform pedals
-
Chain
KMC chain
-
Seat
Extended motorcycle saddle
-
Kickstand
Heavyduty kickstand
-
Fenders
Front and rear
-
Racks
No racks
-
Reflectors
Spoke tire reflectors
Bicycle Components
Let Customers Say for Us
Based on 2 reviews
100%
of reviewers would recommend this product to a friend
Customer photos and videos
2 Reviews
Reviewed by Gene D.
Verified Buyer
Review posted
I recommend this product
Slick looking and easy to learn
What a handsome bike! Learning the safety features and feeling secure after even an hour of practice starting and stopping is easy.
Loading...
Was this helpful?
